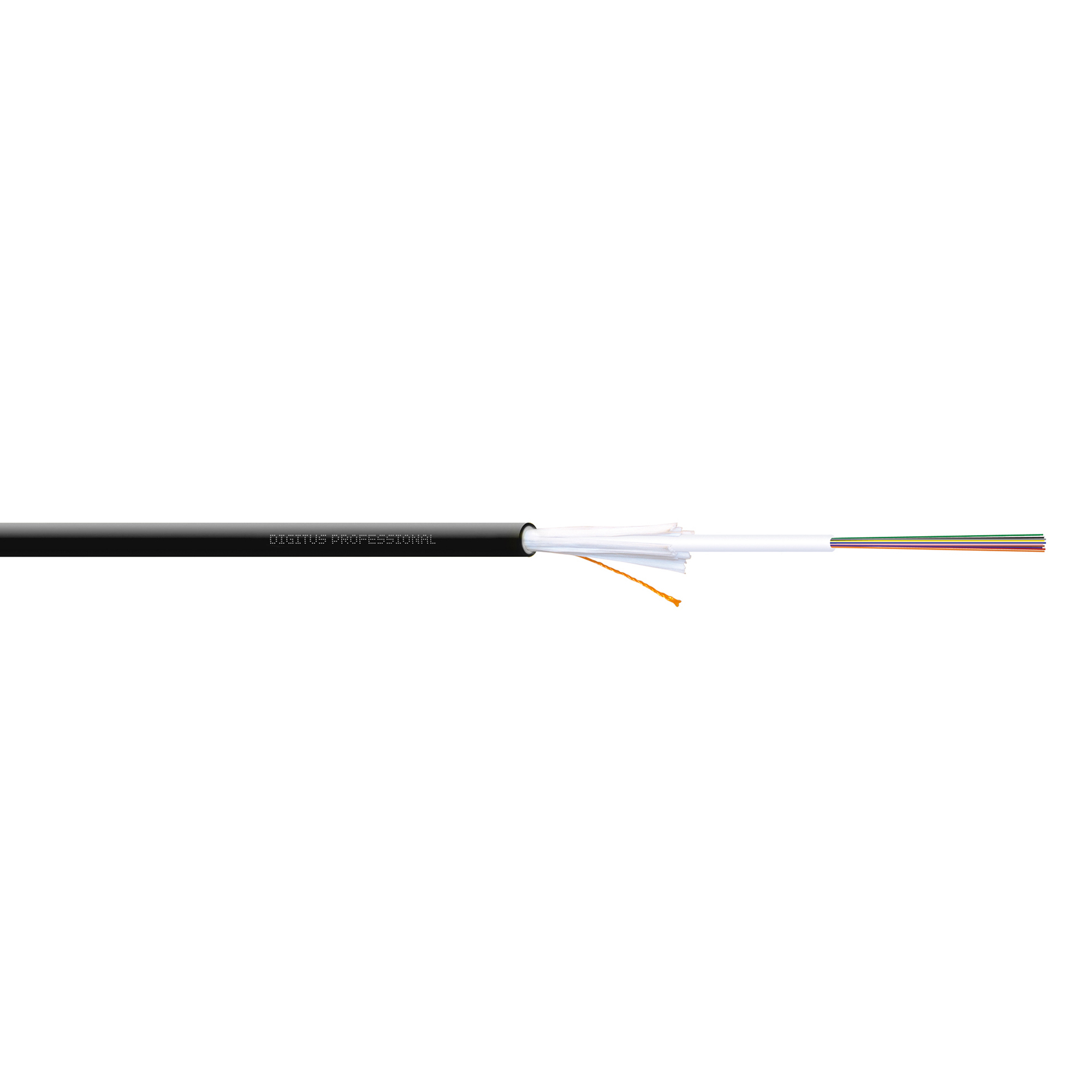

DIGITUS Indoor/outdoor installation cable A/I-DQ (ZN) BH 9/125µ OS2, 12 fibers, BauPVO Dca, LSZH, 100 m

Product number: DK-39121-U-0100
EAN: 4016032505235
FO A-I-DQ(ZN)BH 12E9/125µ, SM, OS2, 12 fibers Indoor/Outdoor, LSZH, Dca, black, 100m

Future-oriented standards and high-end quality for your network.

OS2 9/125µ

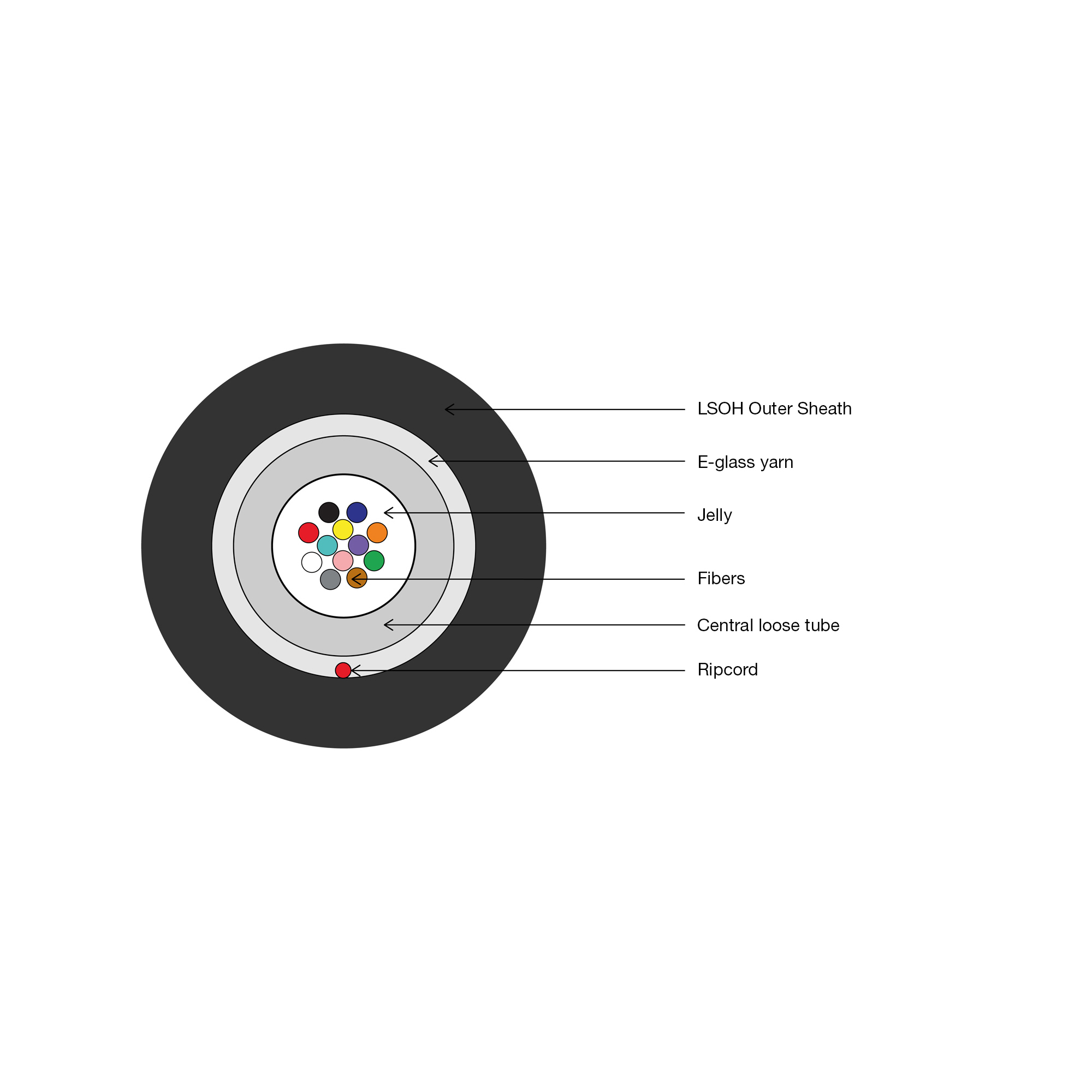

Central loose tube 12 fibers
Non-metallic rodent protection
LSZH, CPR Dca

DESCRIPTION
The central loose tube offers a design with high tensile strength and flexibility in a compact cable size. Our central loose tube offers fiber optic data transmission and excellent technical performance. Our regular quality control programs according to ISO90001, REACh and RoHS ensure a high level of quality. Through a thorough qualification test of each product in our portfolio, we guarantee a high level of reliability. Both quality procedures are designed to ensure the indoor and outdoor durability and performance of our cables.

TECHNICAL DETAILS
LSZH - low smoke zero halogen
UV-resistant
Resistant to longitudinal and transverse water
Glass yarn reinforcement
Non-metallic rodent protection
Metal-free
Attenuation at 1310nm : ≤ max. 0.34 dB/km (before cabling) ; ≤ max. 0.36 dB/km (after cabling)
Attenuation at 1550nm: ≤ max. 0.21 dB/km (before cabling) ; ≤ max. 0.22 dB/km (after cabling)
Attenuation at 1625nm : ≤ max. 0.23 dB/km (before cabling) ; ≤ max. 0.25 dB/km (after cabling)
Dispersion zero point : 1302 ~ 1324 nm
Dispersion gradient : ≤ 0.092 ps/nm 2 x km
PMD link value (M=20 cable Q= 0.01%) max. PMDQ : 0.2 ps/√km
Cut-off wavelength (λcc) : ≤ 1260 nm
Macro bending loss (100 rotations ; Φ50nm) at 1550 nm : ≤ 0.05 dB
Macro bending loss (100 rotations ; Φ50nm) at 1625 nm : ≤ 0.10 dB
Mode field diameter at 1310nm : 9.2 ± 0.4 µm
Sheath diameter : 125 ± 1 µm
Core-shell concentricity error : ≤ 0.6 µm
Sheath out-of-roundness : ≤ 1.0 %
Yield strength : ≥ 0.69 Gpa
Number of fibers (OS2 G.652D) : 2-12 pcs.
max. number of loose tubes : 1 pc.
Number of fibers per loose tube : 2-12 pcs.
loose tube : 2.0 ± 0.2 mm
Outer sheath material : LSZH, BauPVO Dca, EN 50575: 2014+A1: 2016
Outer cable diameter : 6.5 ± 0.5 mm
Max. permissible tensile force : 1400 N
Crush resistance : 1000/200 N/100mm
Temperature range : Transport and storage : - 40°C to + 70°C ; Installation : - 40°C to + 60°C ; In operation : - 40°C to + 70°C
Min. bending radius : Installation : 20 x OD ; In operation : 10 x OD

ATTRIBUTES
Application: universal
Cable jacket: LSOH
Cable type: U-DQ (ZN) BH X E 9/125µm
Color cable: black
Fiber class: OS2
Mode: Singlemode
Number of fibers: 12

PACKAGE CONTENT
1 x indoor/outdoor installation cable A/I-DQ (ZN) BH 9/125µ OS2, 12 fibers, Dca, LSZH, 100m
