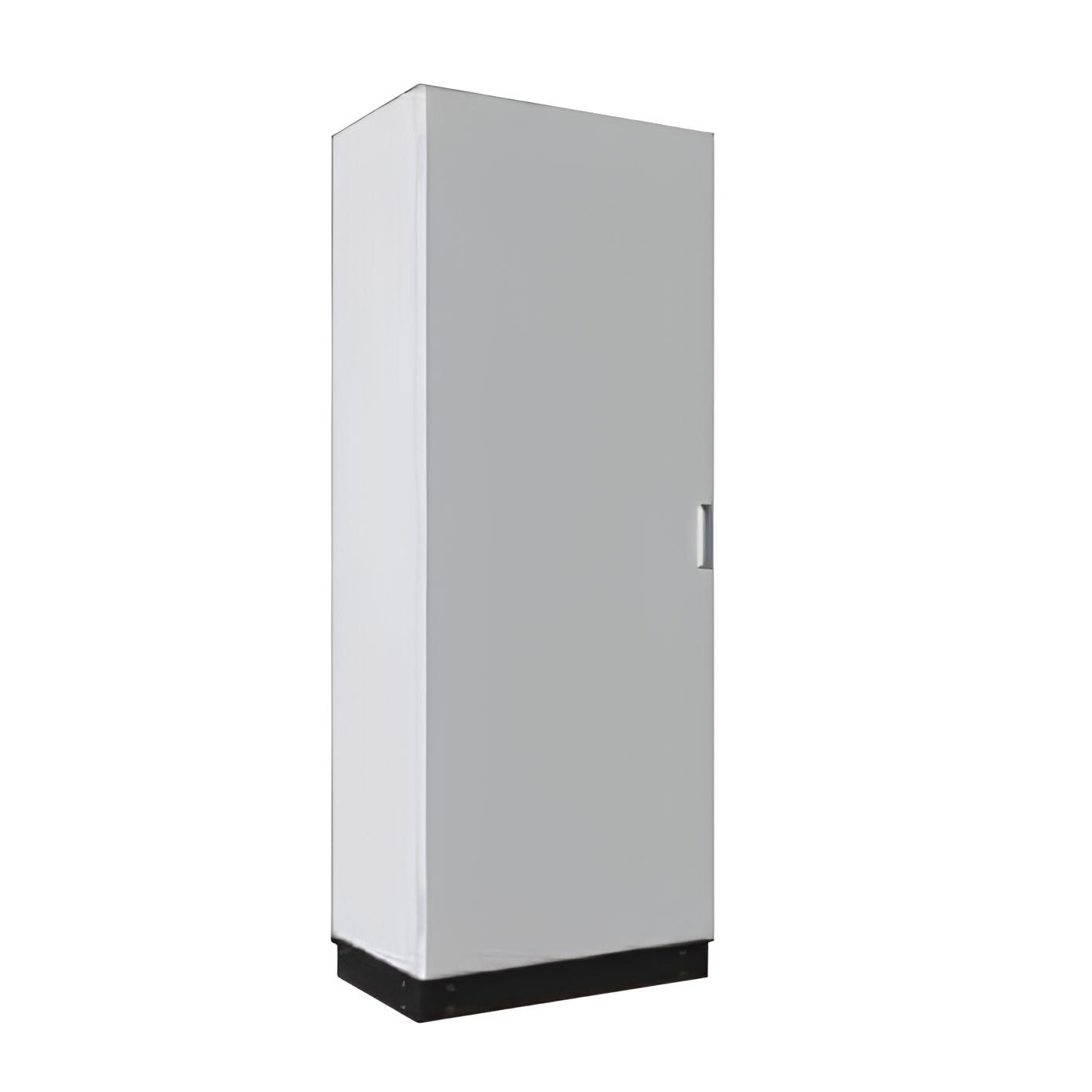

Modular Free Standing Enclosures
Cabinets with Mounting Plate
Counter Panels
Distribution Panels
Compensation Panels
Fields of Use
Indoor Industrial Areas Floor Distribution
Energy Systems
Engine Control
Machine
Control Unit
Compensation
Transformer
Lighting
Worksite
Counter Panels
Designed for many other fields of use.
Technical Specifications:
Protection Level: IP42, IP54
Construction: %100 Modular
Body Main Frame: 2mm galvanized steel
Front and Rear Doors: Emm galvanized steel
Front and Rear Doors 150° opening angle
Side Panels: 1,2mm galvanized steel
Mounting Plate 2mm galvanized steel
Body Corner Joints: 4mm zinc coated steel
Curtain Plate: 1mm galvanized steel
Plinth : Emm galvanized steel-RAL7035 Light Grey Coated
Coating RAL 7035 electrostatic powder coating
Quality Standard: TS-EN 62208
Sealing System: Polyurethane Casting Seal
Cable Entry: PG Gland, Brush, Cable Entry Panels
Hinge: 3 points hidden hinge mechanism
Front and Rear Lock: 3 points locking mechanism
Door Support: Corner support profiles to increase strength
Depth Slide: Corner support for mounting plates and connection equipment
Assembly Equipment: Screws and Nuts
