Technical details

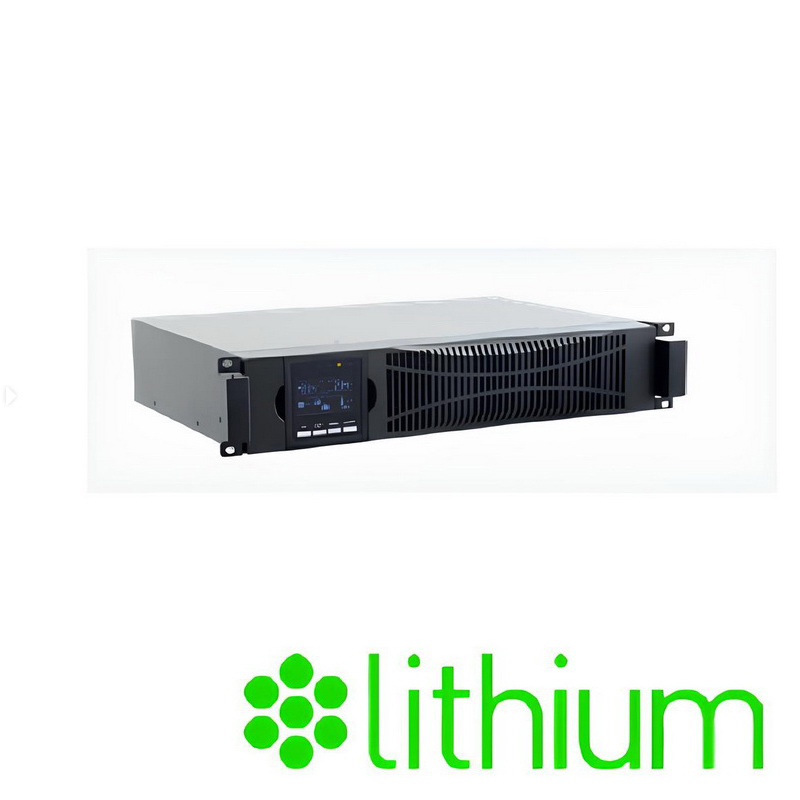

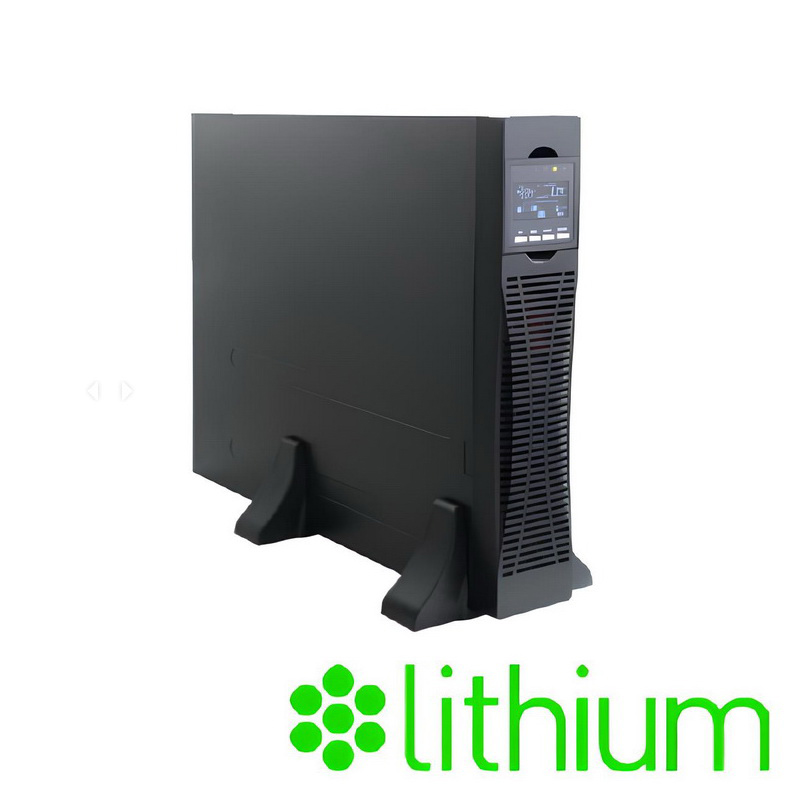

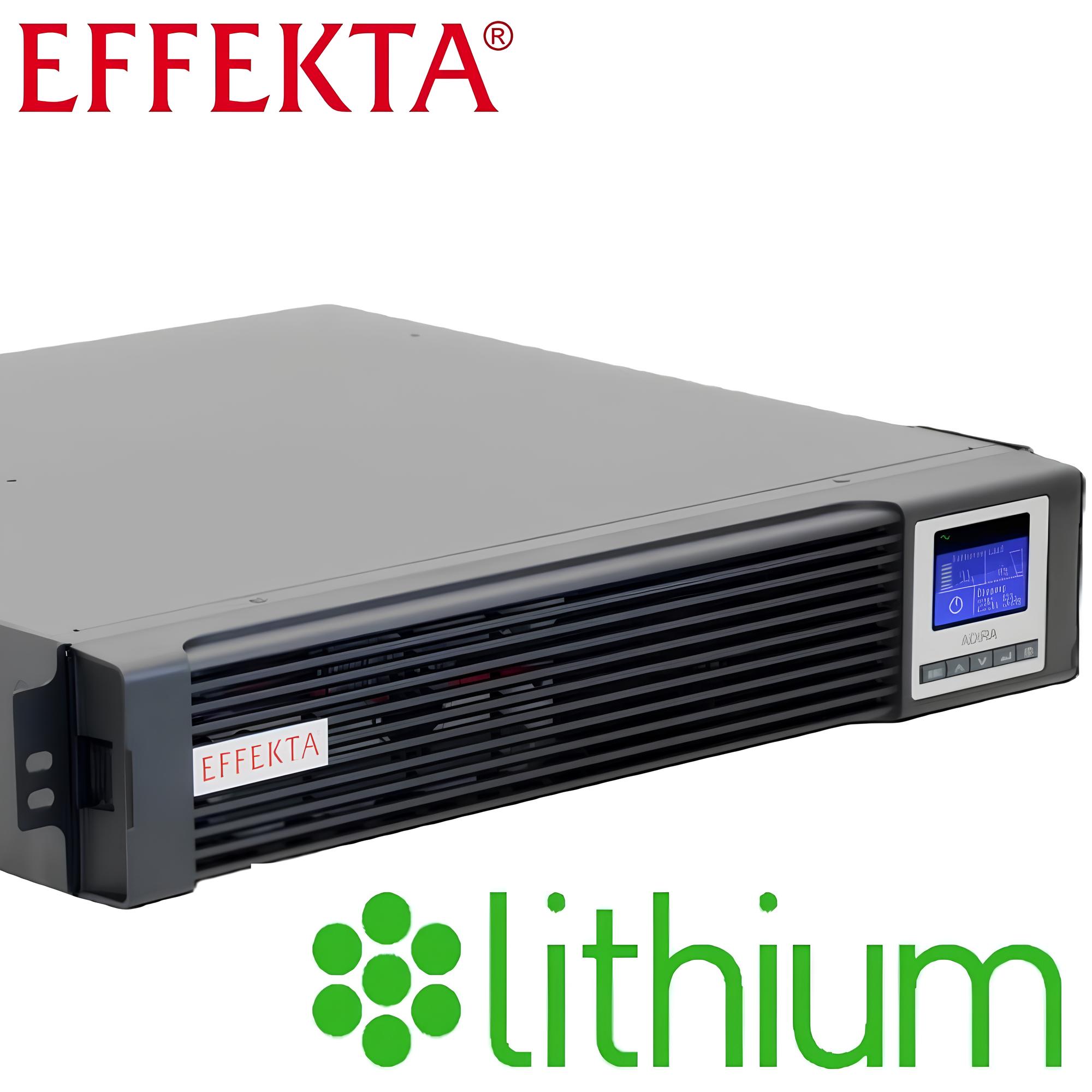

Model RT Lithium 3 kVA

Performance
Rated power in VA/W 3000/3000

Bridging time
100% load (PF 0,7) 160/300

Technology
online double converter VFI-SS-111 according to IEC 62040-3

Phases
input / output 1-phase / 1-phase

Input
Nominal voltage configurable 230, 240 VAC
Input voltage range 160-300 VAC, ±5 %
input frequency range 40-70 Hz (automatic detection)

Output
output voltage 230, 240 VAC
Voltage regulation ±1 %
frequency range 46~54 Hz (at 50 Hz) or 56~64 Hz (at 60 Hz)
switching time no
Overload Normal Operation 105~125 % for 1 minute, 125~130 % for 30 sec., -130 % for 0,2 seconds, then switch to bypass
overload battery operation 105~125% for 1 minute, 125~130% for 10 seconds, -130% for 0,2 seconds
then shutdown of the UPS output
voltage form Sine

Efficiency
normal operation 90%
ECO mode 95%

Battery type (lithium) 25,6V / 9AH
service life expectancy Approx. 10 years / over 2000 charge / discharge cycles
Maximum charging current 2:00 AM

Communication interface RS 232 / USB
Expansion slot 1 x for optional SNMP or relay card
Display LCD display and LED indicators

Dimensions / weight
UPS dimensions (HxWxD in mm) 132x440x420
as a 19- installation variant
battery pack dimensions (2xUS5000): 2x(161x440x420)
Weight UPS in kg including batteries 15+2x40
Protection class IP20K

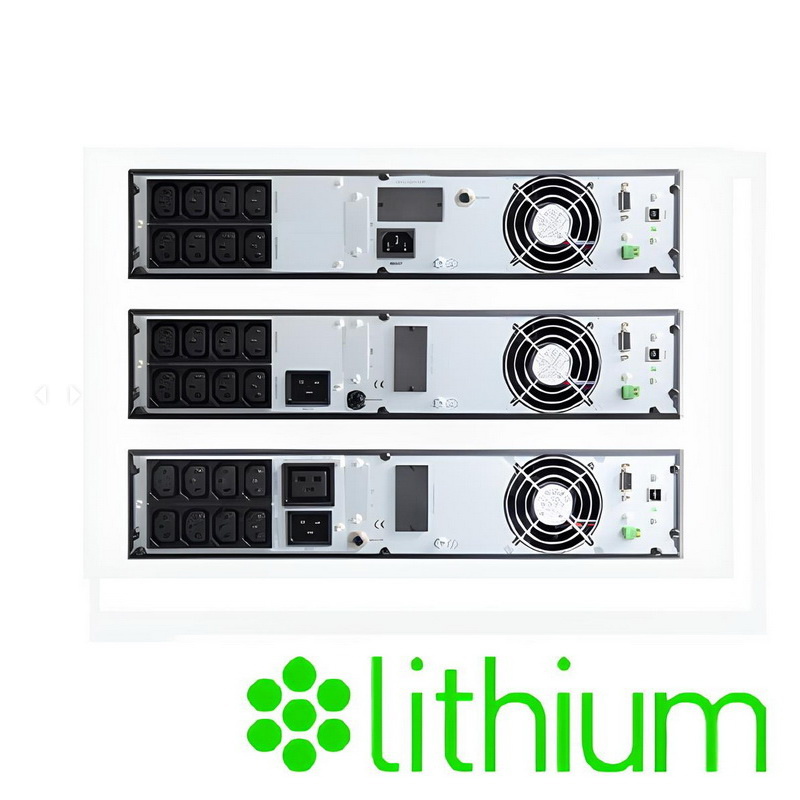

Input IEC (10 A)

Connections Output: terminals

Temperature -25 ~ 55 ° C

Environmental conditions humidity 0~95% (non-condensing)
Operating noise -55 dB (1 m)
Safety IEC/EN62040-1, IEC/EN60950-1

Protection / standards EMC IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,
IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
approvals CE
