Technical details

ADIRA LI RT 3000
Performance Rated power in VA/W 3000 / 3000

Bridging time
100/50% load Standard equipment in min. 10 / 20
Longer autonomy times on request

Technology
online double converter VFI-SS-111 according to IEC 62040-3

Phases
input / output 1-phase / 1-phase

Input
nominal voltage 220 / 230 / 240 VAC
Input voltage range 160~300 VAC
input frequency range 40Hz~70Hz (45~55Hz / 54~66Hz @ load -60%)
grid perturbations THDi -5%

Output
output voltage 220 / 230 / 240 VAC
Voltage regulation ± 1%
frequency range 50/60 ± 0.2 Hz
switching time no
Overload Normal Operation 100%~105%: continuous operation; 105%~125%: - 5 min;
125%~150%: -30s; -150%: -500 ms
voltage form Sine

Efficiency
normal operation 91,7%
ECO mode 97,1%

Battery
tension 76.8 VDC
Capacity (Ah) 9 Ah
Type Lithium
service life expectancy 10 years
Maximum charging current 1,5 A
Recharge time 90% 3,7 Std.

Communication
interface RS 232, USB (including USB HID function), relay contact, RPO
Expansion slot 1 x for optional SNMP or relay card
Display LCD display and LED indicators

Dimensions / weight
UPS dimensions (HxWxD in mm) 85,5 x 438 x 600
Weight 21,4
Protection class IP20K

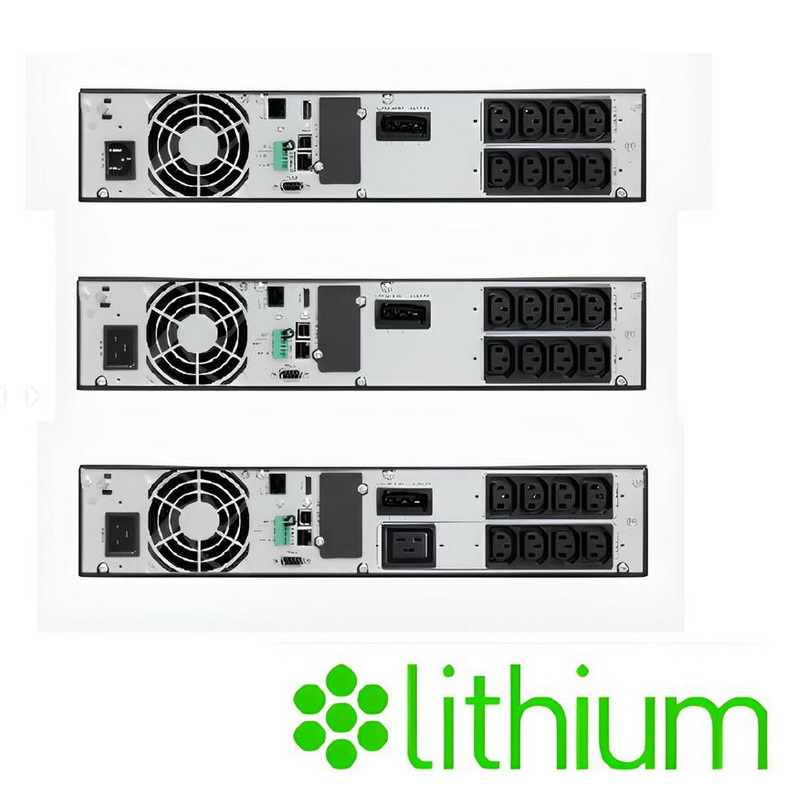

Connections
Input IEC C14 (10 A) IEC C20 (16 A) IEC C20 (16 A)
Output 8 x IEC C13 (10 A)

Ambient conditions
Temperature 0-40° C (at 80% load up to 45° C)
Humidity 20~90% (non-condensing)
Operating noise -45 dB (1 m / at typical load)

Protection / standards
Safety IEC/EN62040-1, UN38.3
EMC IEC/EN62040-2 Klasse C2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5
approvals CE
