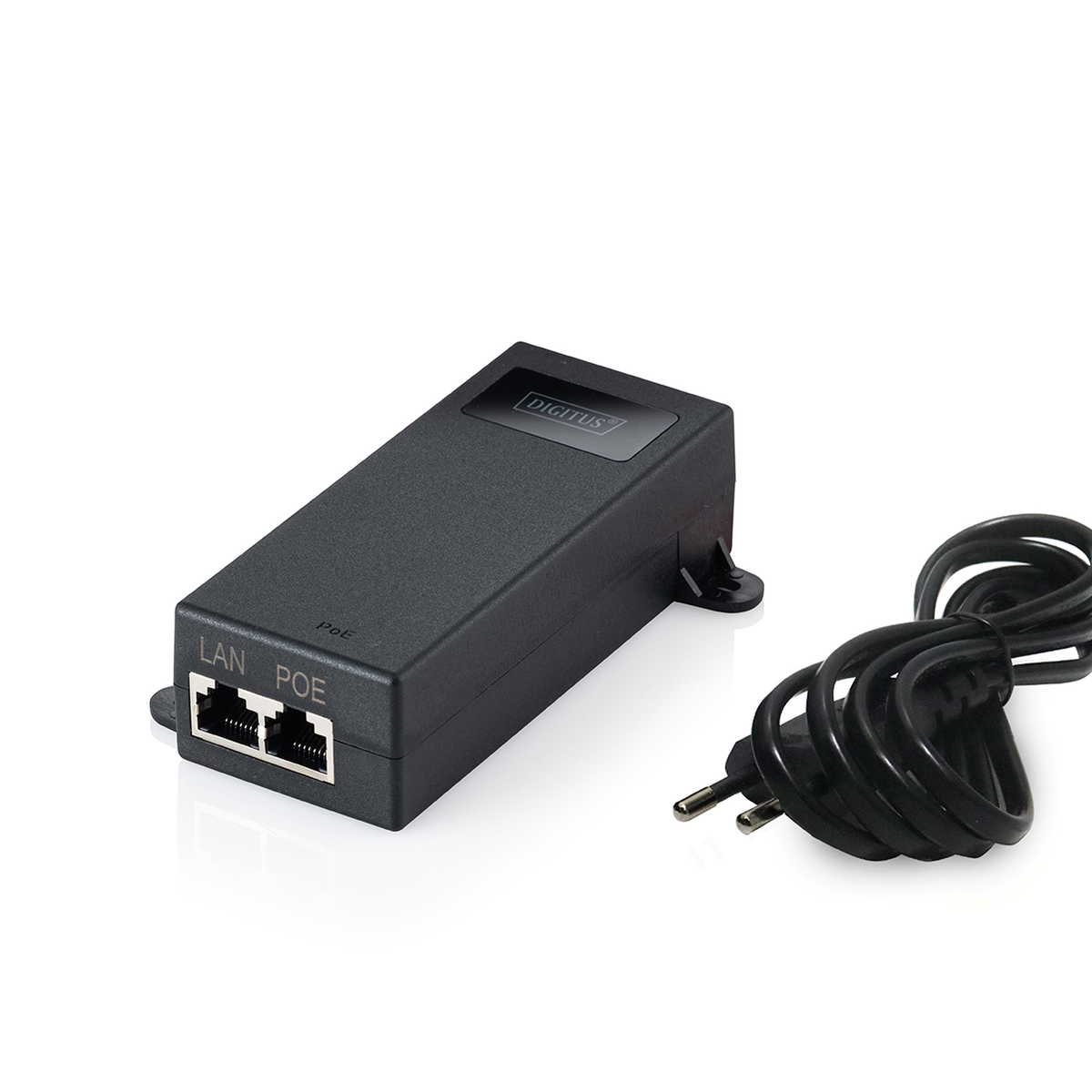

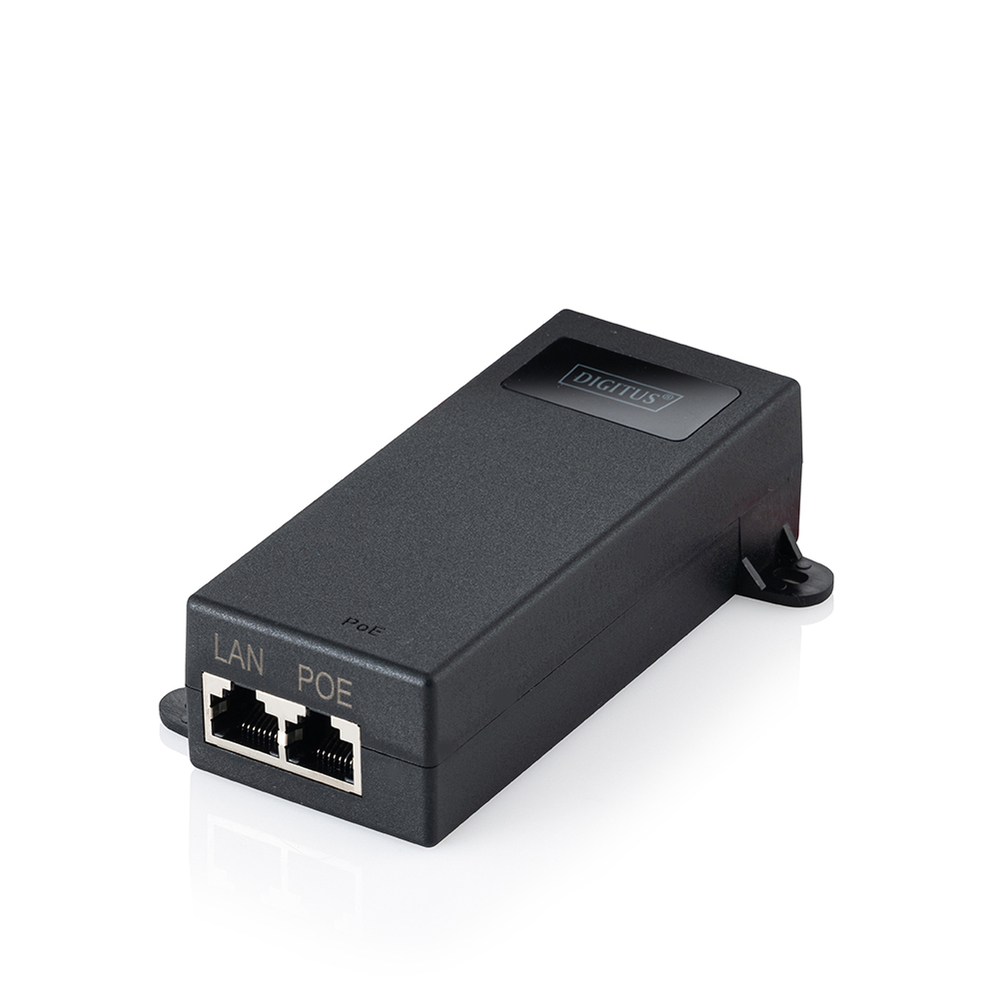

DIGITUS Gigabit Ethernet PoE++ injector, 802.3bt
Product number: DN-95104-1
EAN: 4016032505785
Gigabit Ethernet PoE++ Injector, 802.3bt Power Pins:4/5(+),7/8(-) and 1/2(-), 3/6 (+), 60W

Minimize your cabling effort for wireless APs, IP phones or any other PoE-enabled device!

Complies with the 802.3bt PoE++ standard
Easy merging of power and data cables into a single cable
Expand your network where there are no power lines or sockets
No configuration required
The output has a current limiter, short-circuit protection and automatic terminal device detection and classification

DESCRIPTION
With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices is only fed in via an Ethernet cable. This eliminates the need to lay a separate power cable and enables you to expand your network even where there are no sockets or power cables. The injector is fully compatible with the IEEE 802.3bt Ultra PoE standard and delivers an output power of 60 watts.

TECHNICAL DETAILS
Complies with the 802.3bt PoE++ standard
Easy merging of power and data cables into a single cable
Expand your network where there are no power lines or sockets
No configuration required
Supports all IEEE 802.3bt-compliant PoE devices (e.g. access points, VoIP telephones and IP cameras)
Transmission range up to 100 m
Self-consumption: 0.41W max
Self-consumption (fully utilized): 65.49 W max.

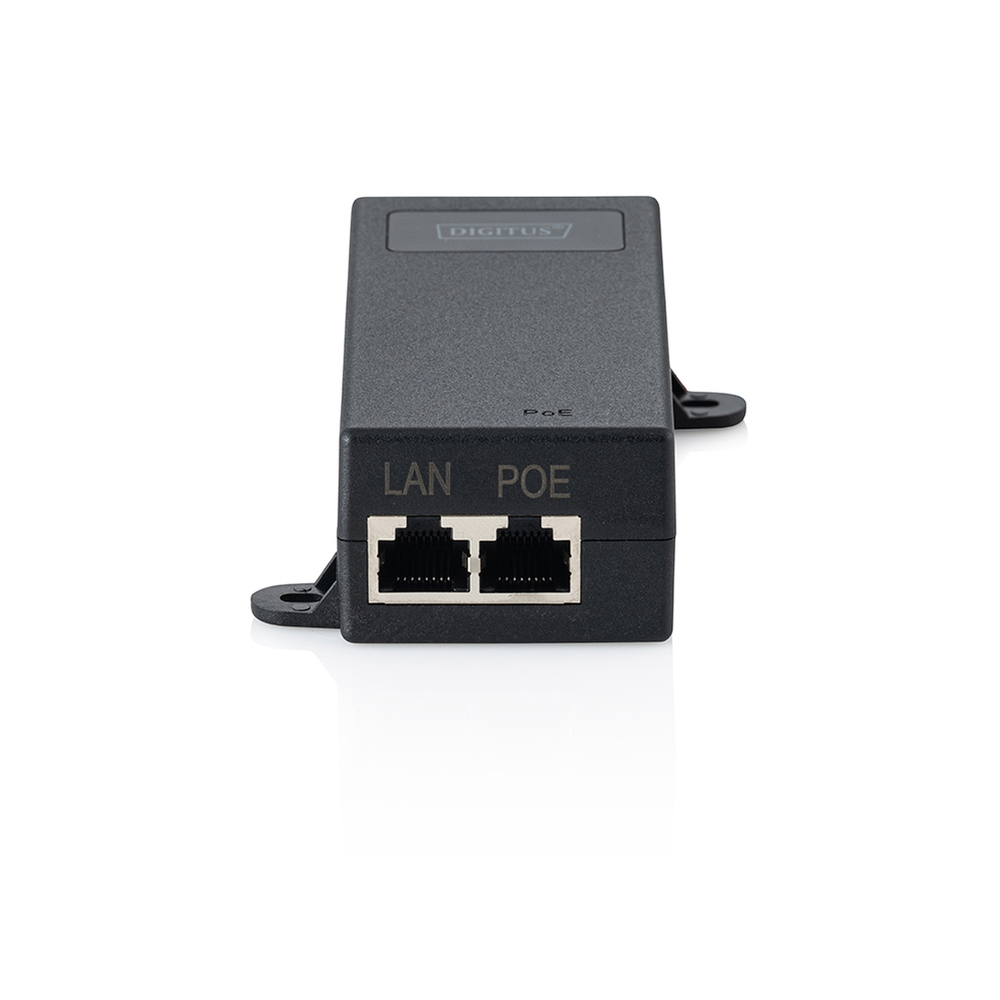

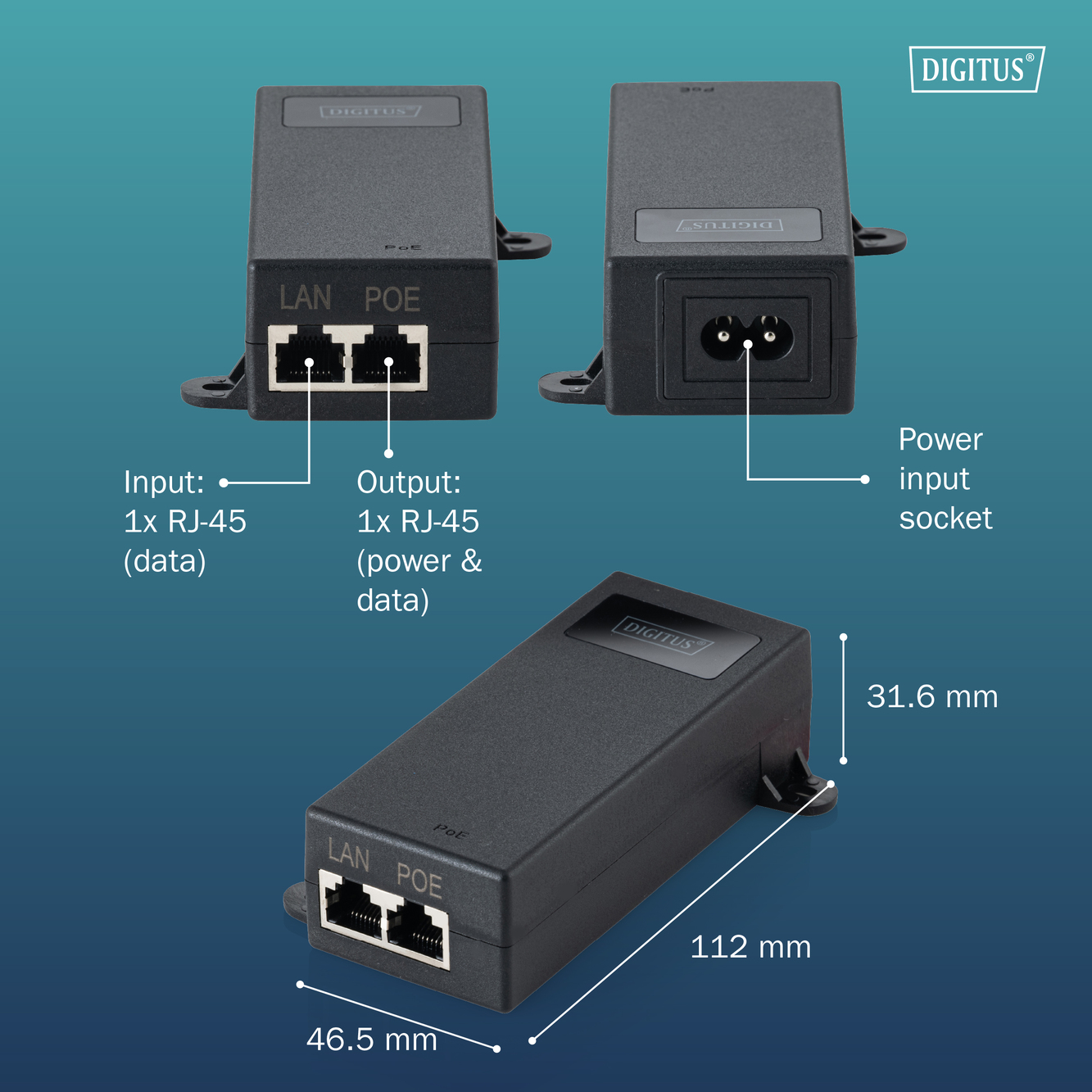

Input: 1x RJ-45 (data)
Output: 1x RJ-45 (power - data)

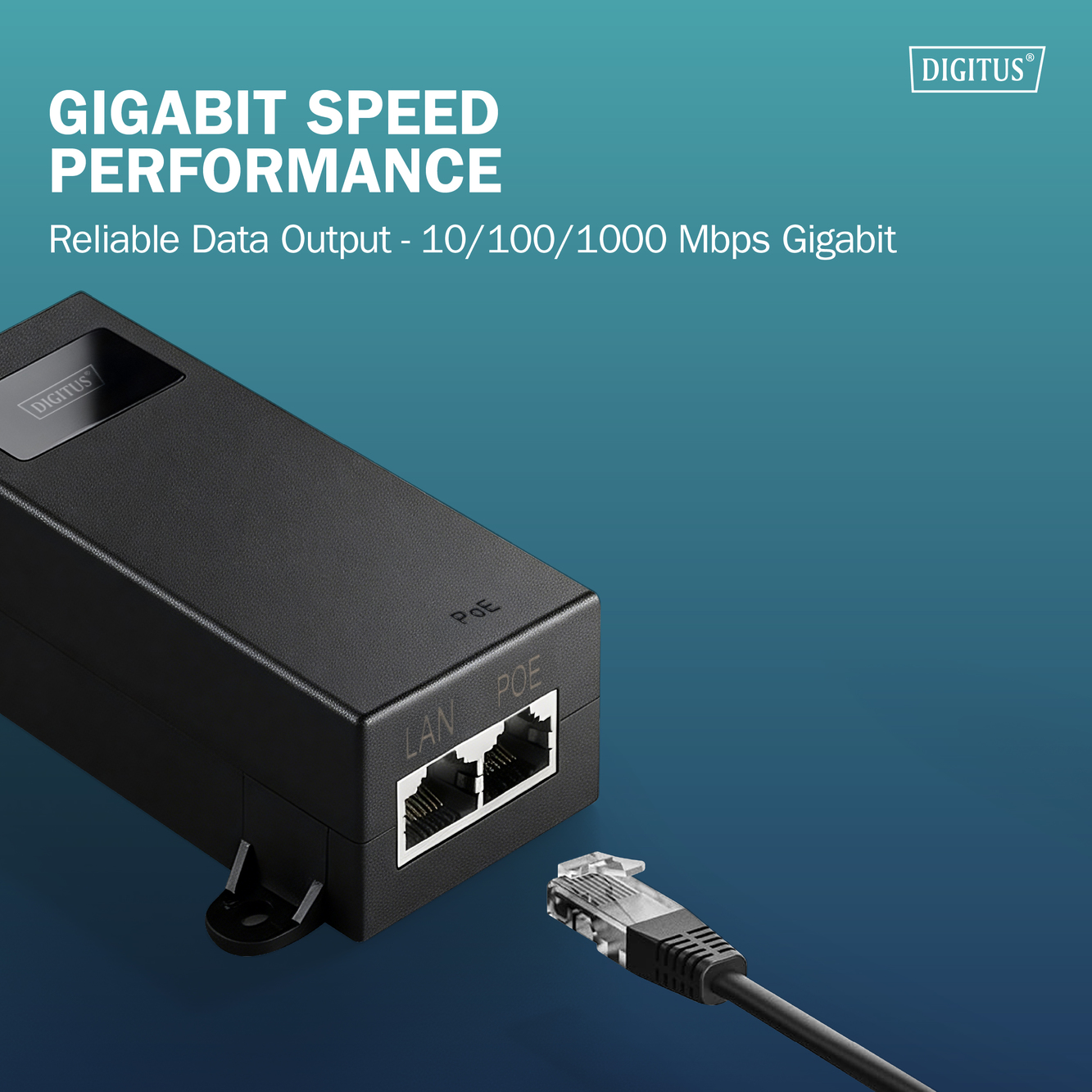

Data output: 10/100/1000 Mbps Gigabit
Output power: 60 watts
Output voltage: DC 54.02V
Operating temperature range: 0 °C to 40 °C
Dimensions: 112 mm x 46.5 mm x 31.6 mm
Weight: 164.7 g
The output has a current limiter, short-circuit protection and automatic terminal device detection and classification
Power consumption specification: 100 - 240V, 50/60Hz
