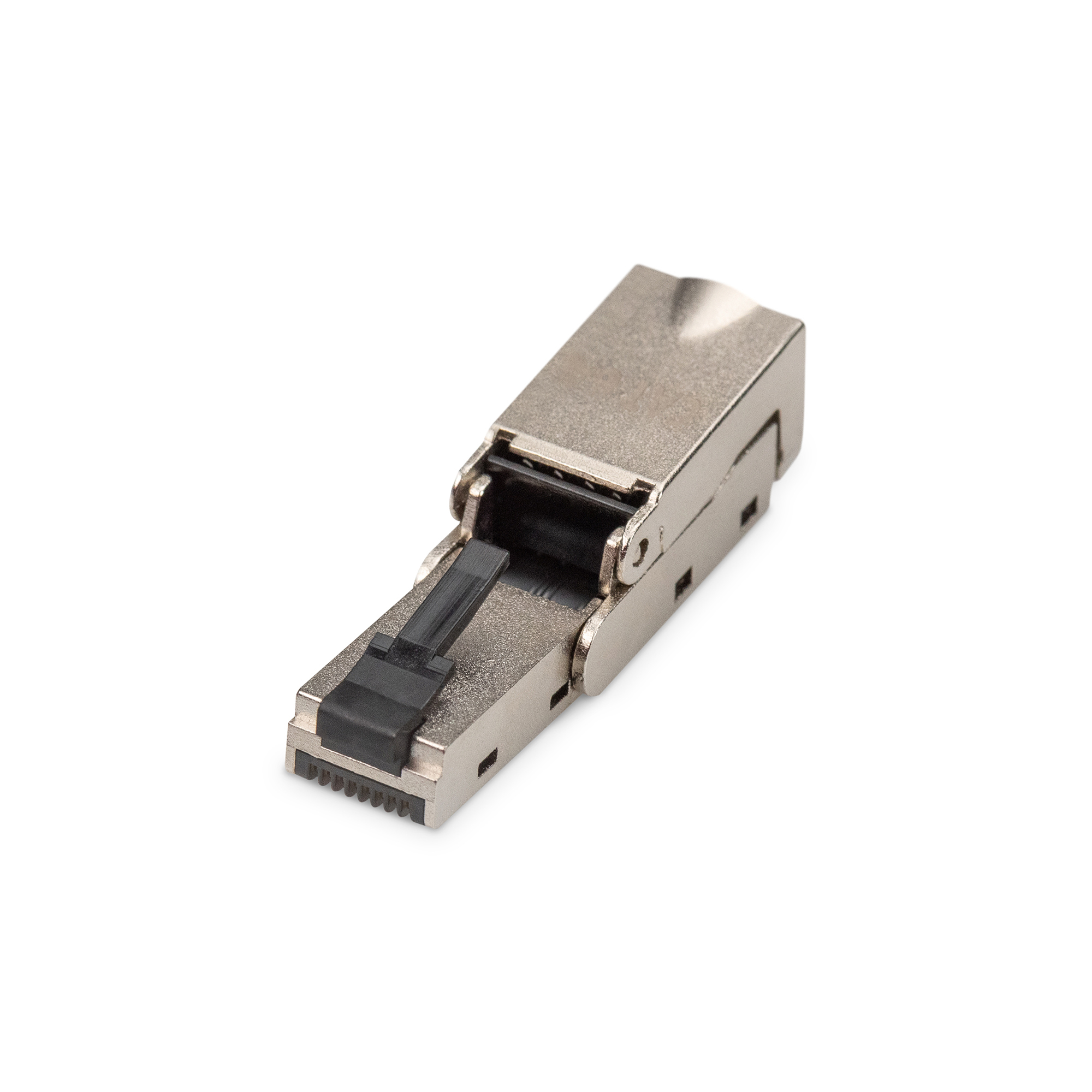

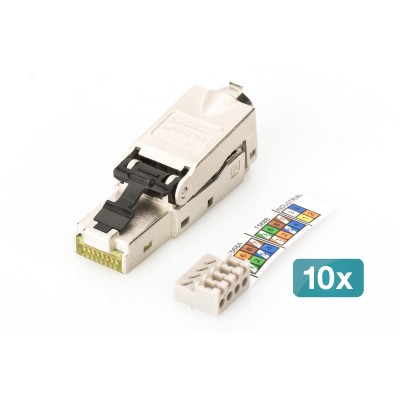

DIGITUS CAT 6A field connector, angled, STP with dust cap, bend protection

Product number: DN-93636
EAN: 4016032495253
CAT 6A field assembly, shielded, Bendable AWG 27/7 to 22/1, solid and stranded wire

High-quality performance: The shielded CAT 6A connector ensures ultra-fast, interference-free data transmission for high-performance networks
Angled design: Innovative, bendable connector for seamless installations in tight spaces without compromising signal quality
Easy termination: Simplified, tool-free connection process that shortens installation time and increases convenience
Durable construction: The robust materials are designed for durability and can withstand use in demanding environments.

DESCRIPTION
The bendable DIGITUS® CAT 6A connector for field assembly is a modern, high-quality RJ45 connector that is not only characterized by its super easy application, but also by the fact that it reliably and quickly supports the field assembler in every application. The quick installation in just 60 seconds without any special tools, as well as the enormous flexibility, makes it the perfect choice for all locations. It is suitable for all networks, from voice to 10 Gigabit Ethernet. Satisfied customers thanks to fast and cost-saving installation, repair and maintenance are the logical consequence of this innovative RJ45 connector. Why make it complicated when it can be simple? See for yourself!

TECHNICAL DETAILS
Pre-assembled protective cap
Robust zinc die-cast housing
Can be angled
360° contacting of the cable shield for improved EMC protection
Can be assembled in 60 seconds and without special tools
Optimized for field use, even under difficult conditions
Reliable transmission even in the event of external interference
Ideal for repairing and expanding networks
Conductor cross-sections AWG 27/7-22/7, AWG 24/1-22/1
Wire diameter: 0.85 - 1.6 mm
Outer cable diameter: 5.0-9.0 mm
Dimensions (W x H x D): 12.5 x 13.0 x 45.0 mm
Weight: 78 g
Thermal and climatic properties:
Operating temperature: -40 °C to +80 °C
Electrical properties:
Current carrying capacity at 50 °C: 1 A
PoE+ according to IEEE 802.3at: Suitable for Power over Ethernet+
Standards:
Gigabit Ethernet according to IEEE 802.3
10 Gigabit Ethernet according to IEEE 802.3an: Suitable for 10 Gigabit Ethernet
