N180x180S white

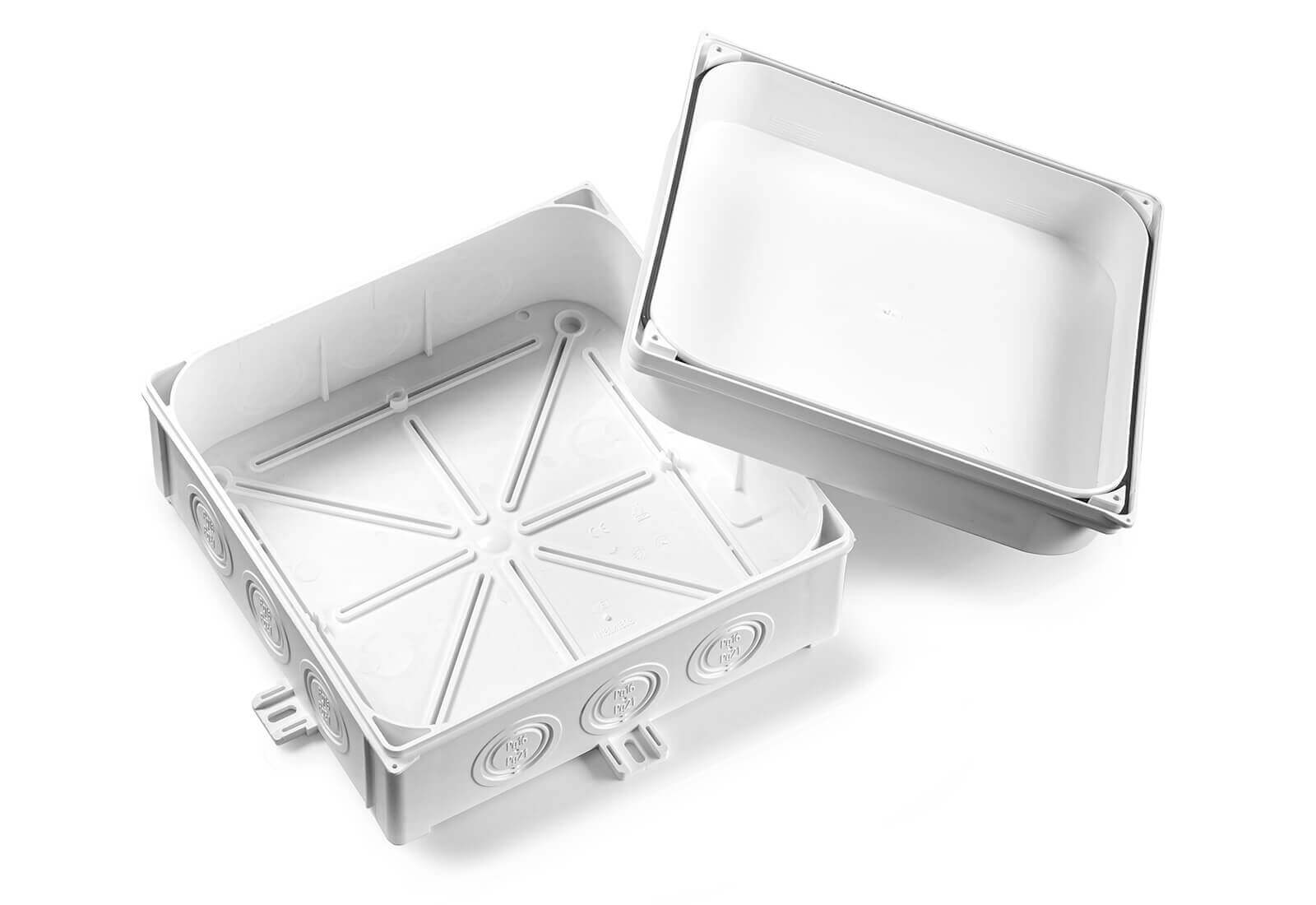

Surface junction box 188x188x88 mm, IP67

Cat. No.
35300206
EAN code
5907813226533
Name of item
N180x180S white
Qty.
4 pcs.

Colour
white
Width
188 mm
Length
188 mm
Height
88 mm
Material
polyamide PA 6
Material properties
halogen-free / self-extinguishing / resistance to UV radiation
Resistance to heat
960 °C
Flammability class
UL94 V0
Protection class
IP67
Rated voltage
400 V
Max rated cross-section
2.5 mm²
Number of gland holes
12
Operating temperature
-25 °C...+45 °C
Additional information
12 knockouts for threaded cable glands PG16 (⌀ 23 mm) and PG21 (⌀ 29 mm), 4 acid-resistand threaded screws
