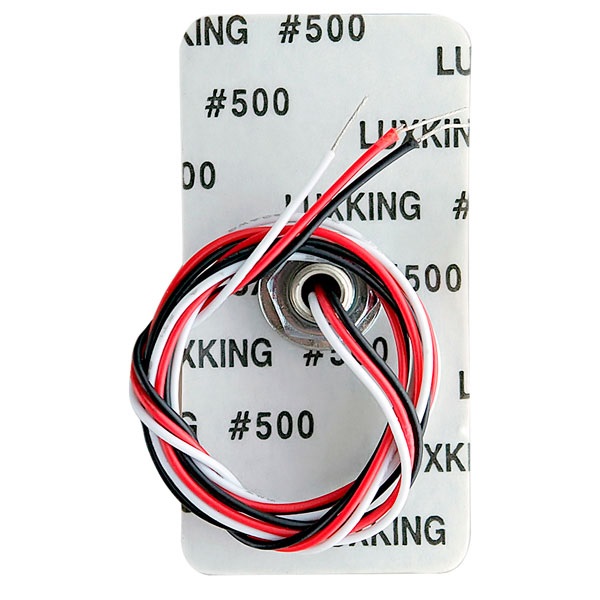

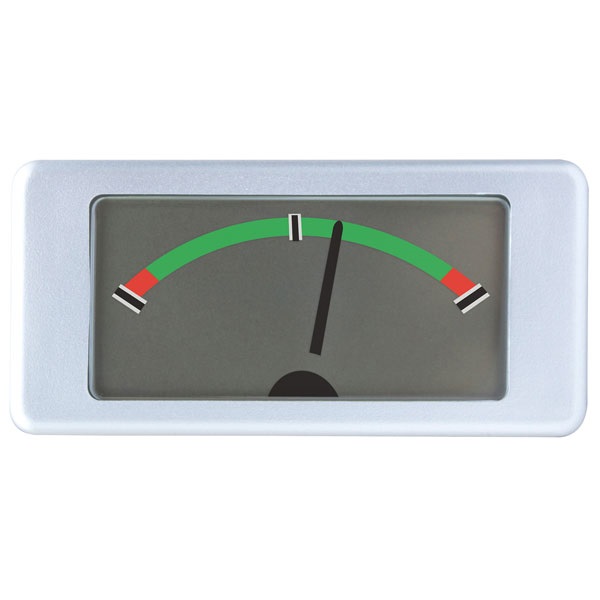

This panel meter features an analogue style LCD for measurement of voltage. Fitted with a threaded stud which allows mounting of the product through a 5.5mm (7/32”) drill hole, this unique enclosure provides quick and easy mounting. A rubber seal provides splashproof protection when fitted between the meter and mounting panel. Connection is via wires.

Range: 1 V d.c.
Accuracy (overall error): 1 segment
Operating temperature: 0 to 50 °C (32 to 122 °F)
Sample rate: 10 samples/sec
Supply voltage: 5 to 12 V d.c.
Supply current: 6 mA
