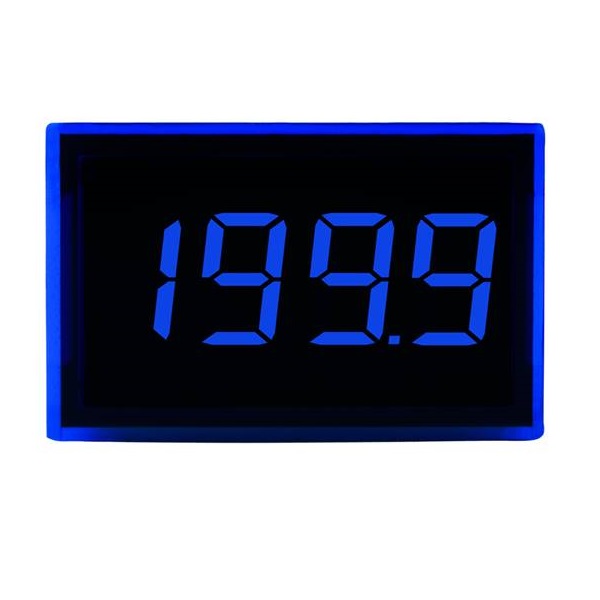

This ultra low profile panel meter features a 3½ digit blue LED display with 9.4mm (0.37-) digit height.

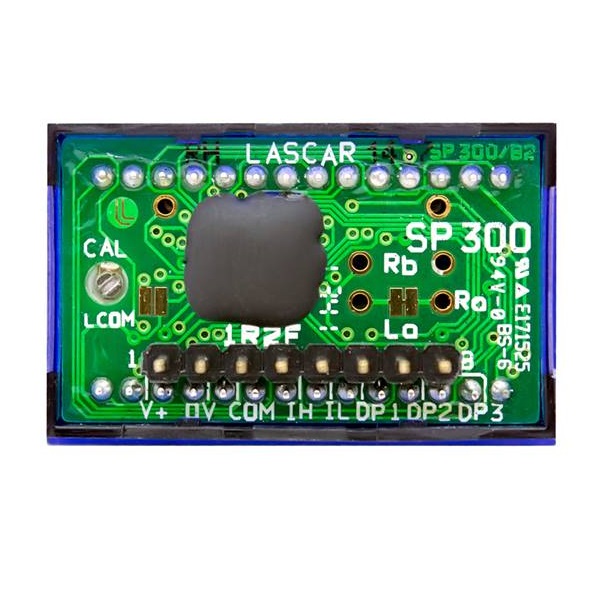

With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into an 8-way SIL socket and can be fitted into a panel via the fixing clip.
Splash-proof protection is achieved by fitting the seal supplied.
The SP 300-BLUE is a low cost, popular part, normally stocked in high quantity and suitable for new designs.

Accuracy (overall error): 0.1 % (±1 count)
Operating temperature: 0 to 50 °C
Sample rate: 2.5 samples/sec
Supply Voltage: 4.75 to 5.25 V d.c.
Supply Current: 50 mA
