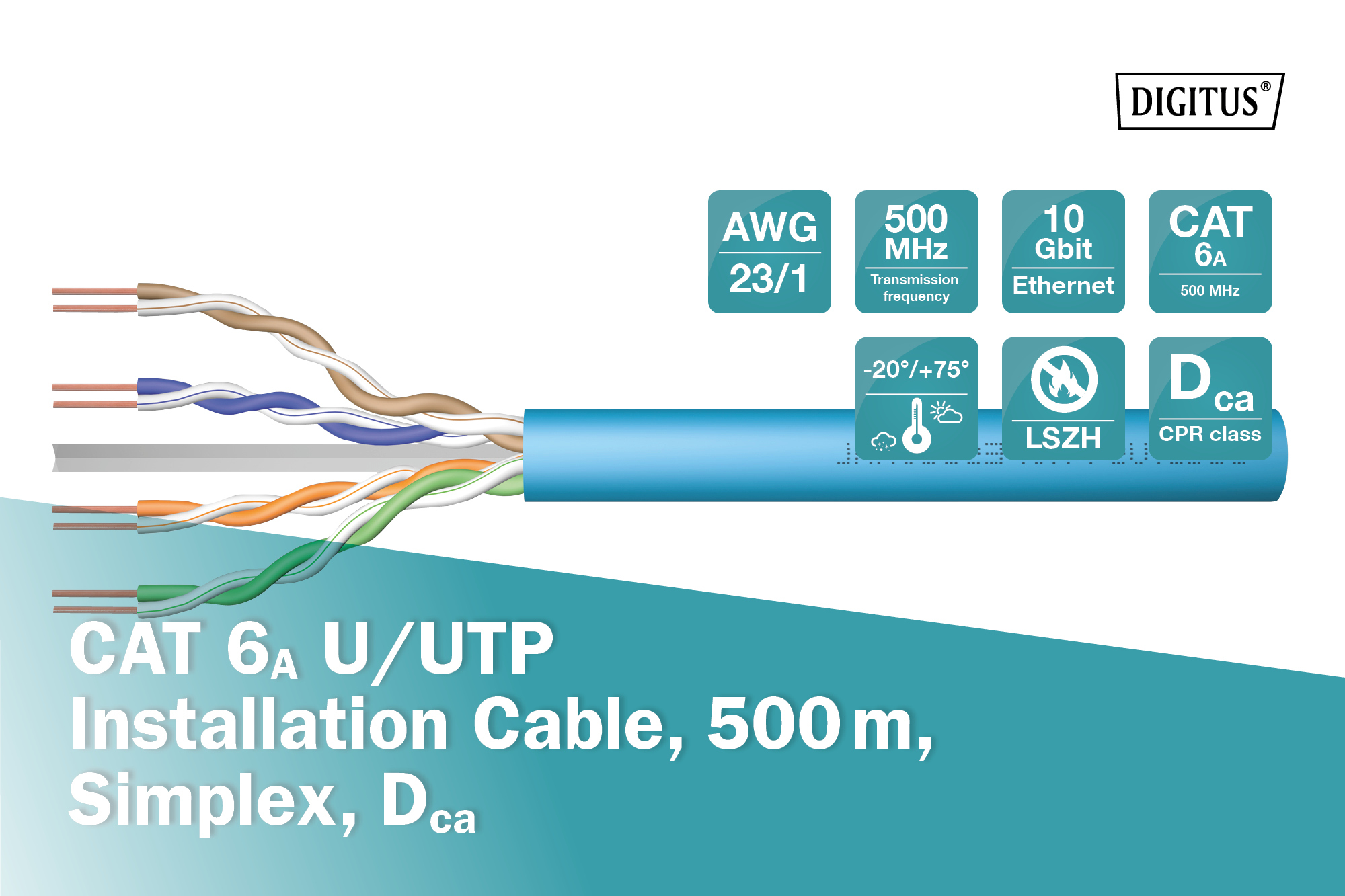

DIGITUS Cat.6A U/UTP installation cable, 500 m, simplex, Dca
Product number: DK-1614-A-VH-5
EAN: 4016032441885

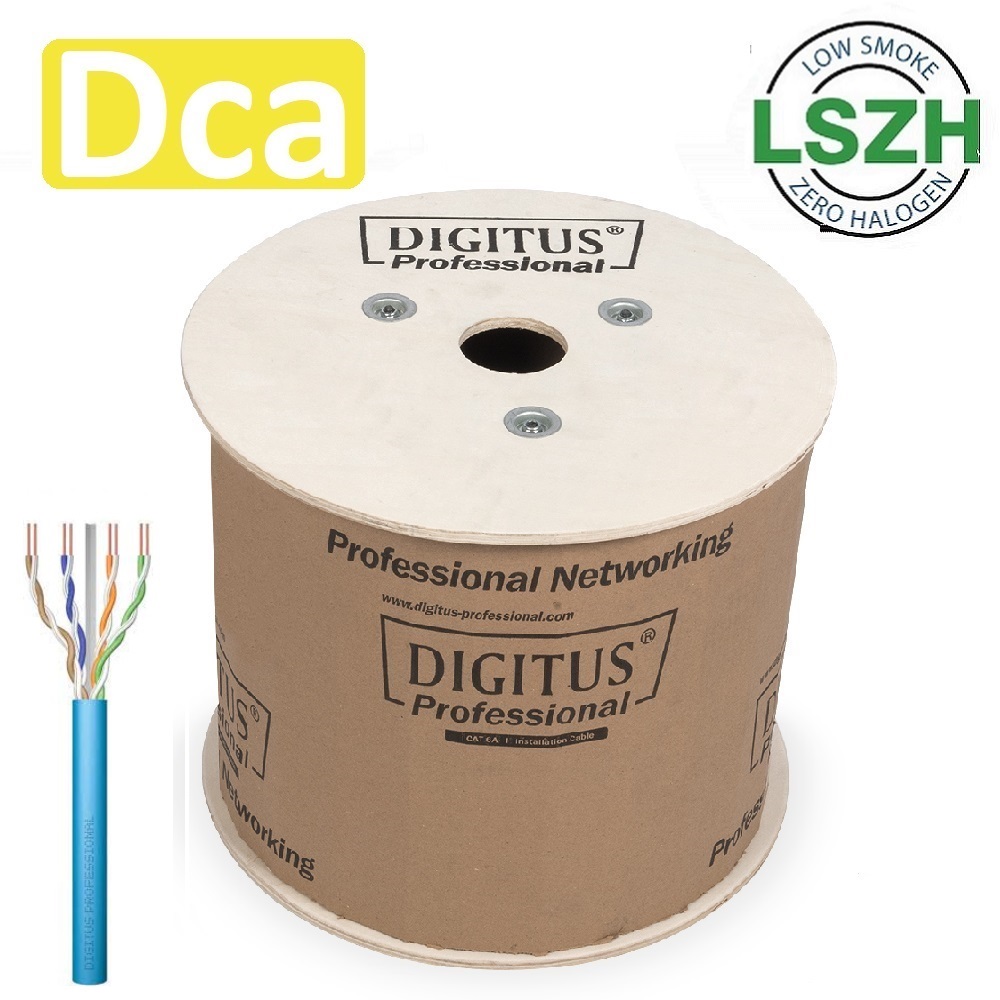

CAT 6A U-UTP installation cable, 500 MHz Dca (EN 50575), AWG 23/1, 500 m drum, sx, blue

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
500 MHz transmission frequency
PoE Power over Ethernet support
CPR class Dca

Description

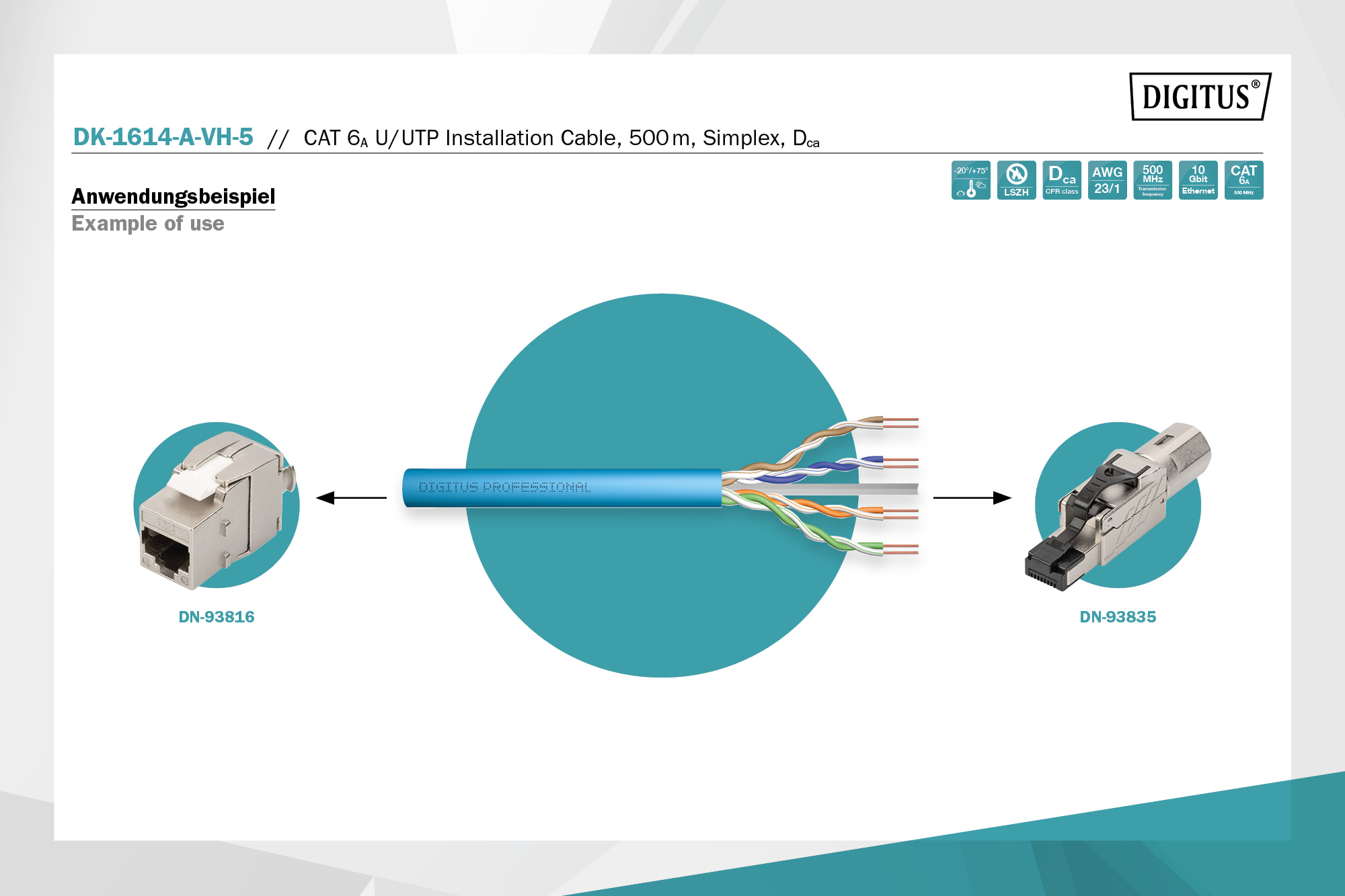

DIGITUS® Category 6A U-UTP installation cables are manufactured and tested to the ISO/IEC 11801, TIA/-586-C.2 and EN 50173 Category 6A specifications. Every cord consists of 8 color coded AWG 23 polyethylene insulated con-ductors. The conductors are twisted together to form 4 pairs with varying lay lengths. Printing details along the outer sheath includes the brand name and item code. The cable is packed in a paper pullout box which makes the installation easy.

Technical details
Physical properties:
Conductor: Bare annealed copper, olid AWG 23/1
Insulation: HD-PE (High Density Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: None
Outer sheath: Dca to B2ca acc. to EN 50575; LSZH
Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca); 1,2 mm (Cca); 1,4 mm (B2ca)
Outer sheath color: Light blue (RAL 5012)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +60 °C
Operating temperature range: -20 °C up to +75 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter Simplex (nominal): 7,1 mm (Eca); 7,3 mm (Dca); 7,4 mm (Cca); 7,6 mm (B2ca)
Weight (kg/km): 53 kg (Eca); 54 kg (Dca); 55 kg (Cca); 56 kg (B2ca)
Electrical properties:
Impedance: 100±5Ohm @ 1 - 600MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 2
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 10 nS/100 m max.
Separating class: “c” acc. to EN 50174-2
NVP: 70%
Category: CAT 6A
Shielding: U-UTP, unshielded
CPR: Dca
Length: 500 m
Color: light-blue
Jacket: LSOH
Structure: 4 x 2 AWG 23/1, solid twisted pair
