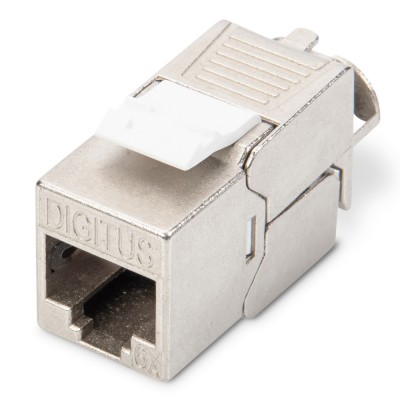

DIGITUS CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)
Product number: DN-93617-24
EAN: 4016032365860
CAT 6A Keystone Jack, shielded tool free connec., set 24 pcs

Design-capable, shielded, tool-free and intelligent cable manager


Strain relief and cable fixing using intelligent cable manager
360° shield contacting
Suitable for field assembly (tool-free installation)
Design-compatible - suitable for mounting in distribution panels and junction boxes
CAT 6A with LSA insulation displacement connectors
Dust protection cap for RJ45 socket
GHMT certified
Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

Description
The shielded CAT 6A keystone module set DN-93617-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have 360° shield contacting, a locking lever and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows for row installation in 483 mm (19-) 1U panels. The tool-free installation is carried out via LSA strips, color-coded in accordance with EIA/TIA 568 A-B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Technical details
Category 6A 10GBase-T, 500 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)
Suitable for distribution panel and junction box installation
RJ45 socket, 8P8C
Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A - B
Strain relief and cable fixing using intelligent cable manager
Tool-free mounting connection
360° shield contacting
Housing material: Zinc die-cast - nickel-plated
Contact material: Phosphor bronze
Coating Contacts: Nickel, gold-plated 0.5 μ
Insertion force: Max. 30N (according to IEC 60603-7-51)
Holding force: 7.7 kg between socket and plug
Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
In accordance with IEC 60512-5, IEC 60512-6-5
Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
Tested with AWG 22/1 solid installation cable
(DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A - B
Intelligent cable manager (reclosable)

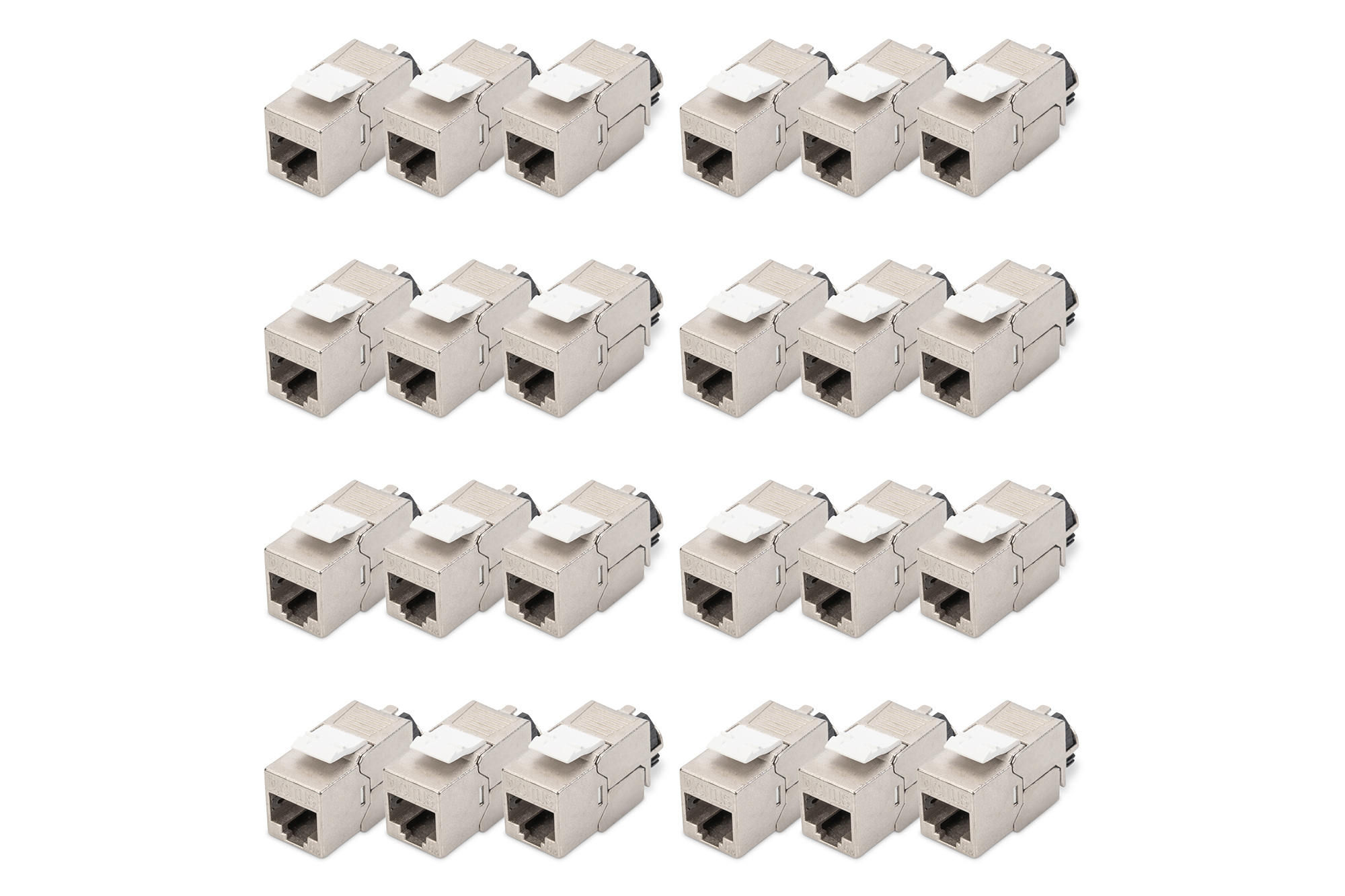

CAT 6A Keystone module, shielded, set= 24 pieces
Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
Weight: 19.5 g
Attributes
Category: CAT 6A
