DIGITUS Network Set - 254 mm (10-) - 9U, 312 x 100 mm (W xD)
Product number: DN-10-SET-2
EAN: 4016032455370

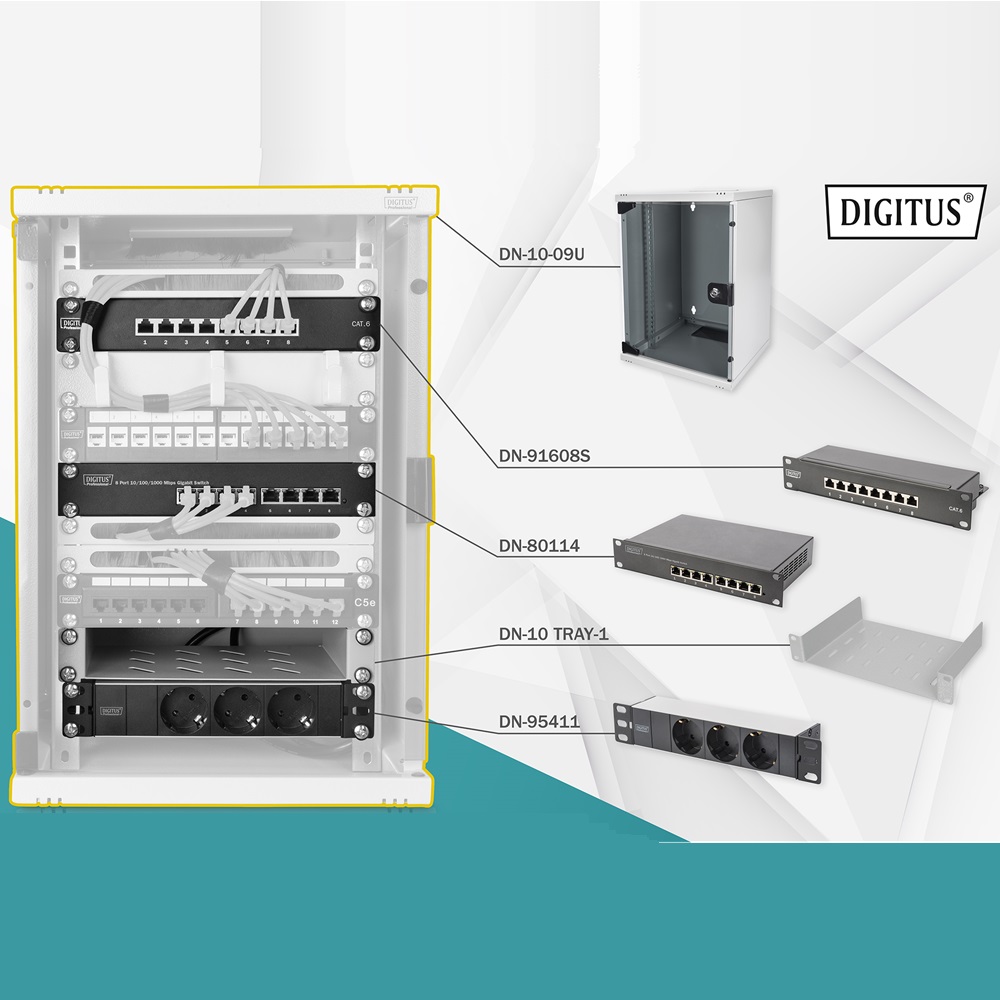

10 inch network bundle, including 9U cabinet, grey shelf, PDU, 8-port switch, CAT 6 patch panel

Complete set to build up a compact 254 mm (10-) network incl. cabinet, shelf, power strip, switch, patch panel

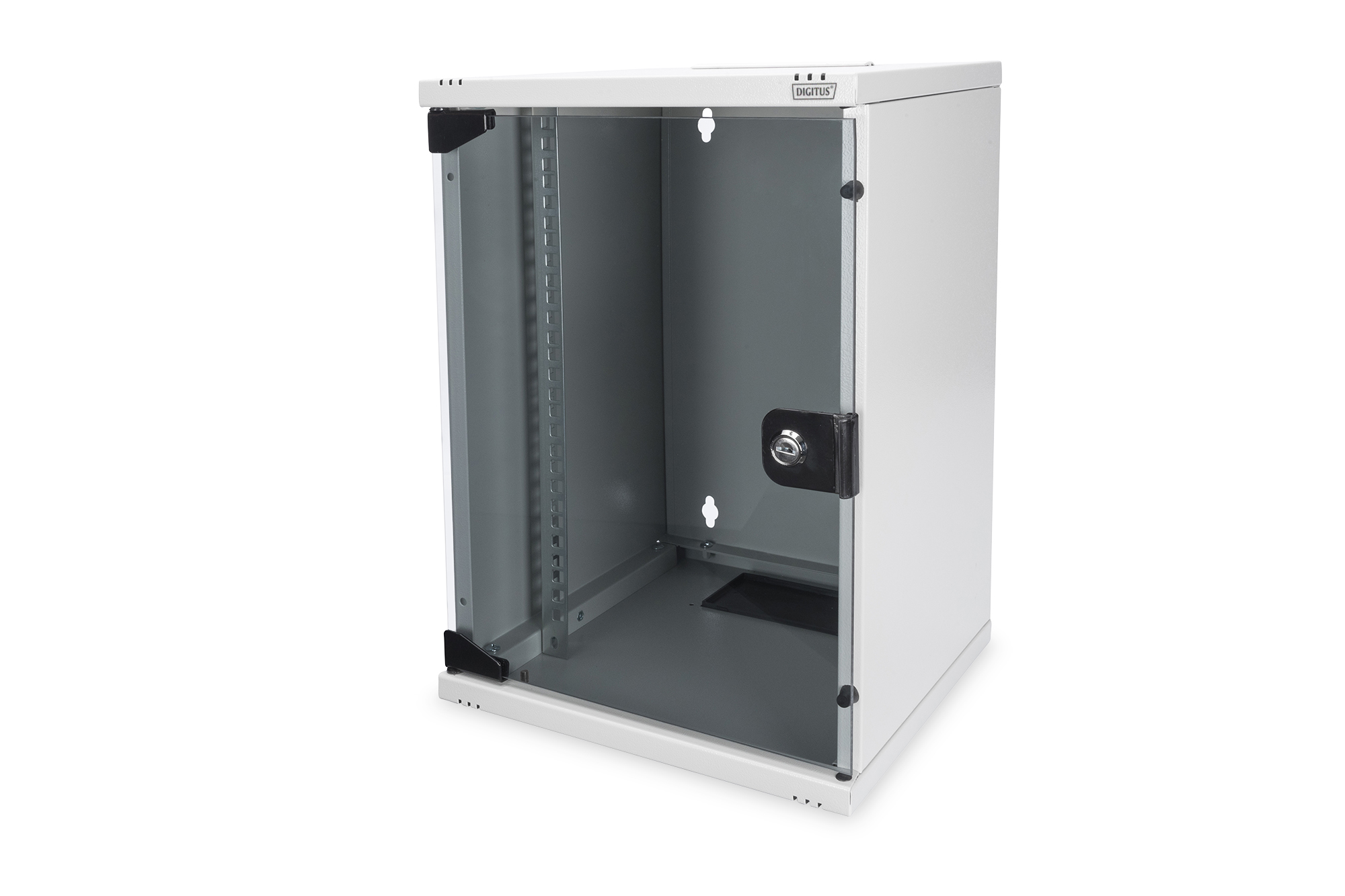

Including wall housing, 9HE, 464 x 312 x 100 mm (DN-10-09U)

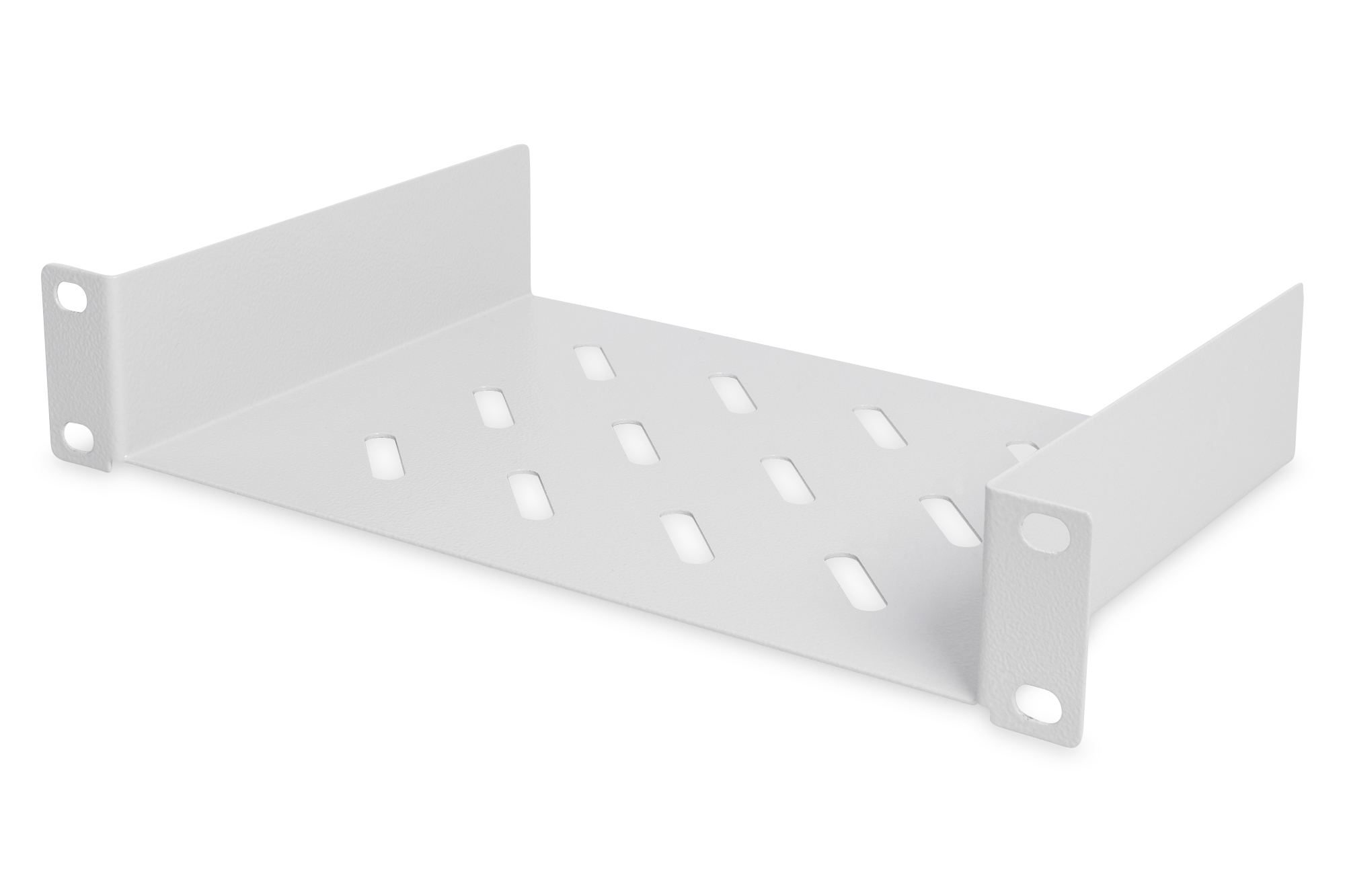

Including shelf, 1HE (DN-10 TRAY-1)

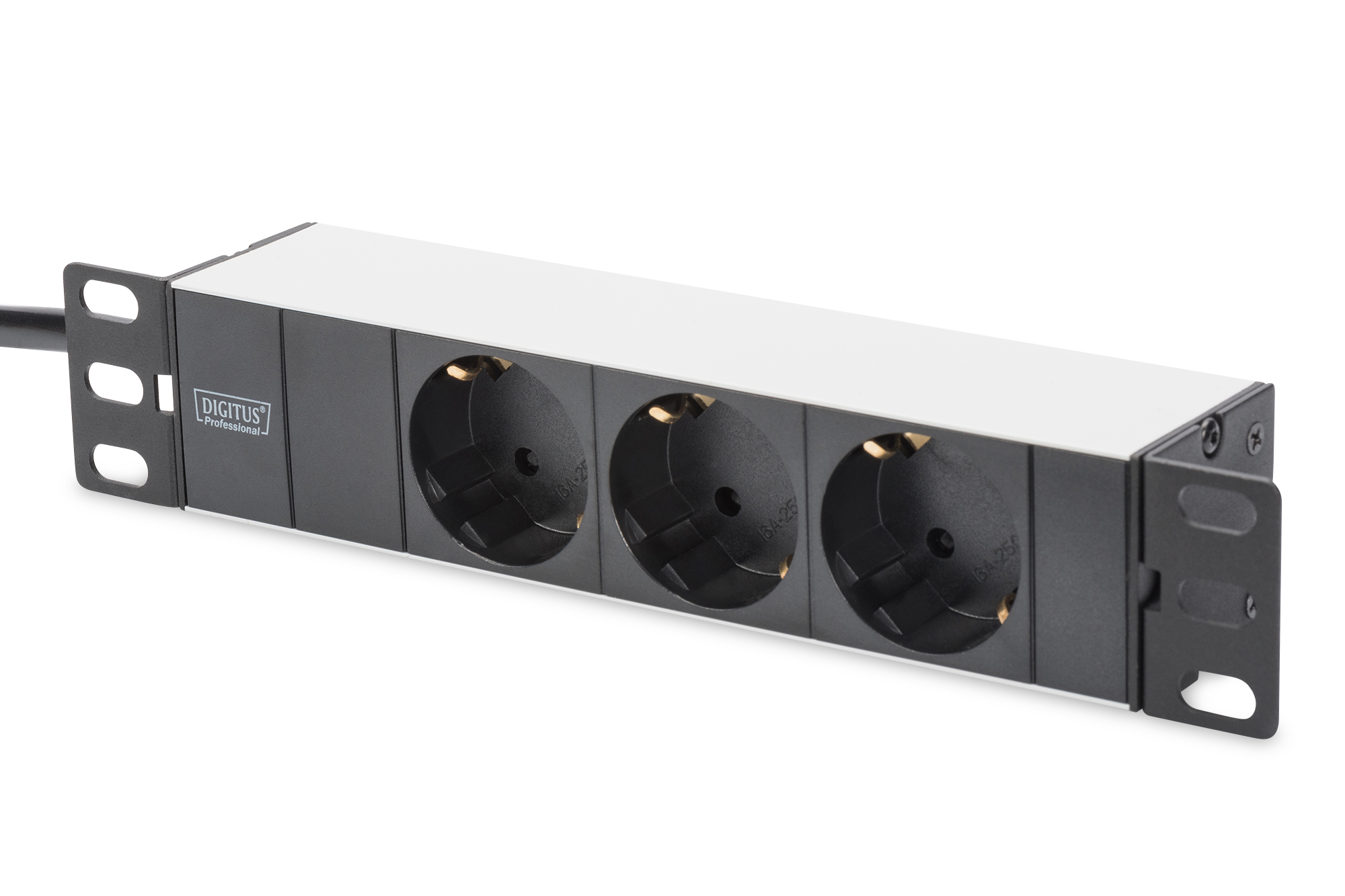

Including power strip, 1HE, 3x safety socket (DN-95411)

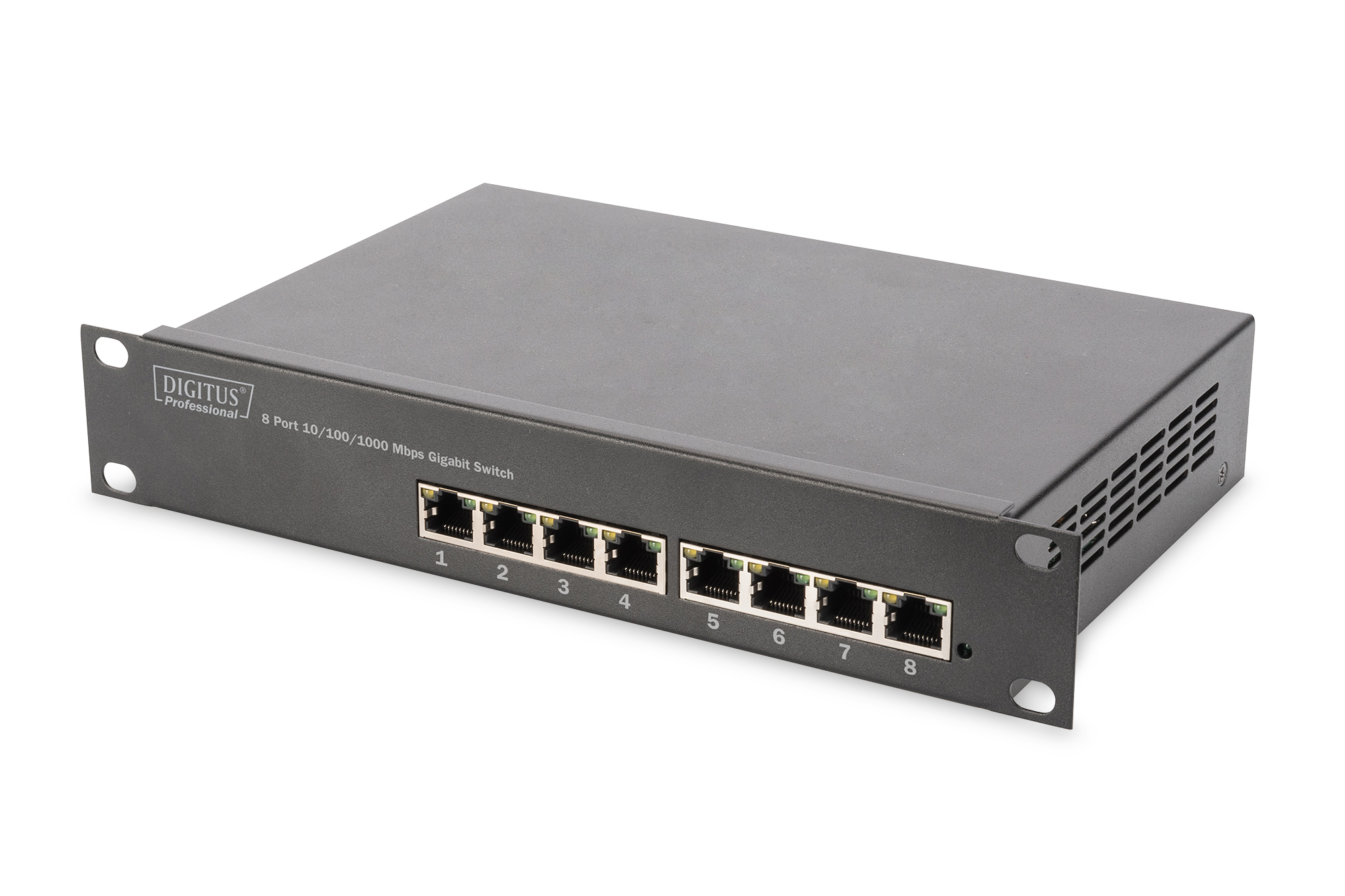

Including Gigabit Ethernet Switch, 8-port (DN-80114)

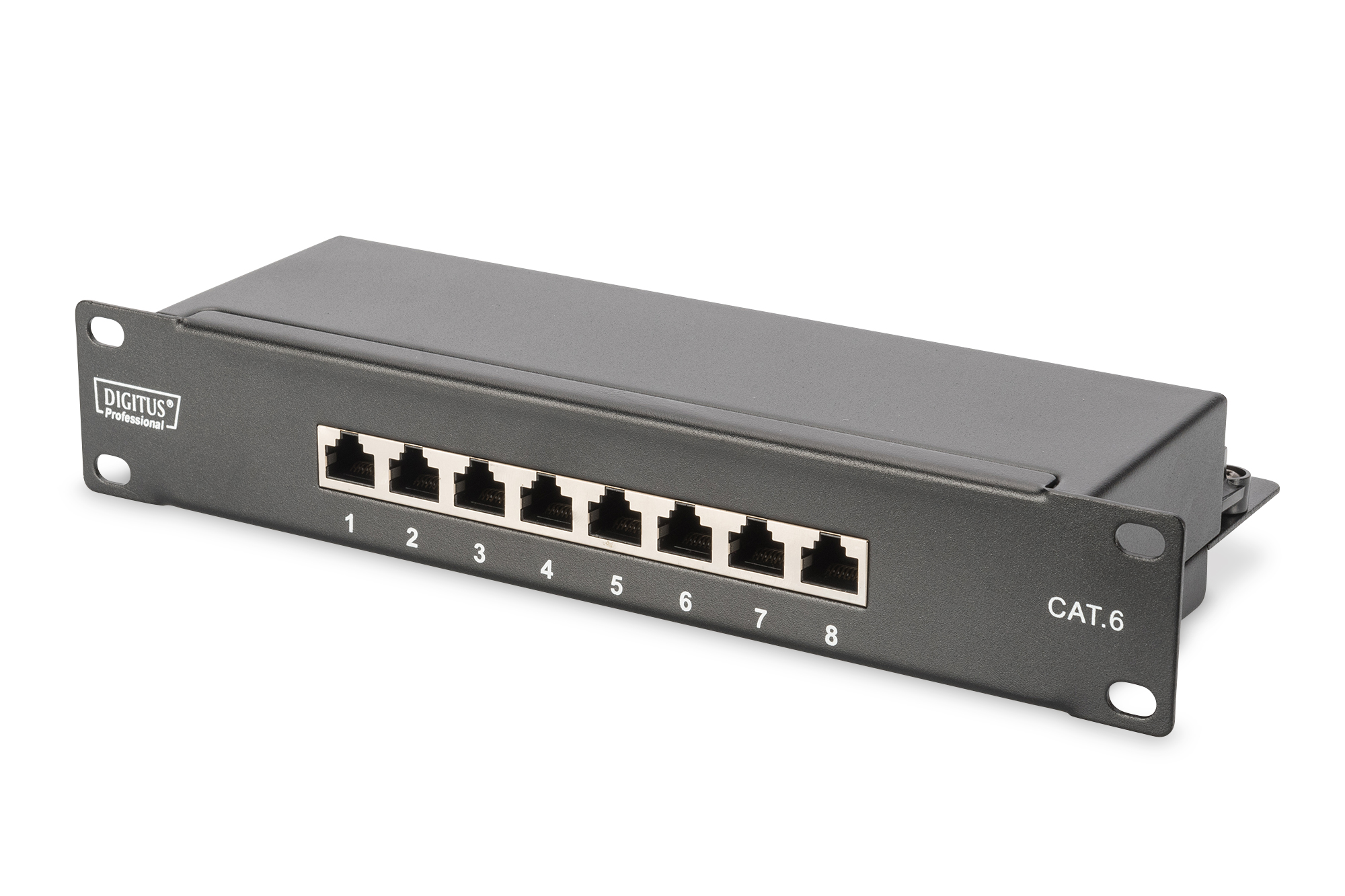

Including CAT 6, Class E, Patch Panel, 8-port, screened (DN-91608S)

DESCRIPTION
Whether for private areas, office or sub-distribution units with limited space: With the compact 254 mm (10”) solutions, you can install your network wherever you like. The wall housings available in three rack units (6 rack units, 9 rack units, 12 rack units) are supplemented in these network sets by perfectly coordinated components to ensure fast and easy usability of IT cabling. The network cabinet and relevant accessories (such as switch, patch panel, socket strip, shelf, cable guidance panel, patch cable, etc.) are delivered in a compact box.

TECHNICAL DETAILS
Wall housing dimensions (H x W x D): 464 x 312 x 100 mm
Power strip with 3 safety plug sockets 250VAC 50/60Hz / 16A / 1000W
Power strip with 2 m mains cable H05VV-F 35 1.5 mm² with safety plug sockets
Switch complies with network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
Patch panel for applications up to 250 MHz, 1GBase-T
Cable installation on patch panel via LSA rails, color coded in accordance with EIA/TIA 568 A - B
Cabinet type: Wall mounting cabinet
Color: light grey, RAL 7035
Depth: 300 mm
Front door: Glass door, single opening
Load capacity: 30 kg
Side panels: Both sides
Units: 9
Width: 312 mm
IP protection class: IP20
Mounted: yes
PACKAGE CONTENT
1x wall mounting cabinet
1x shelf
1x power strip
1x network switch
1x patch panel
2x keys
