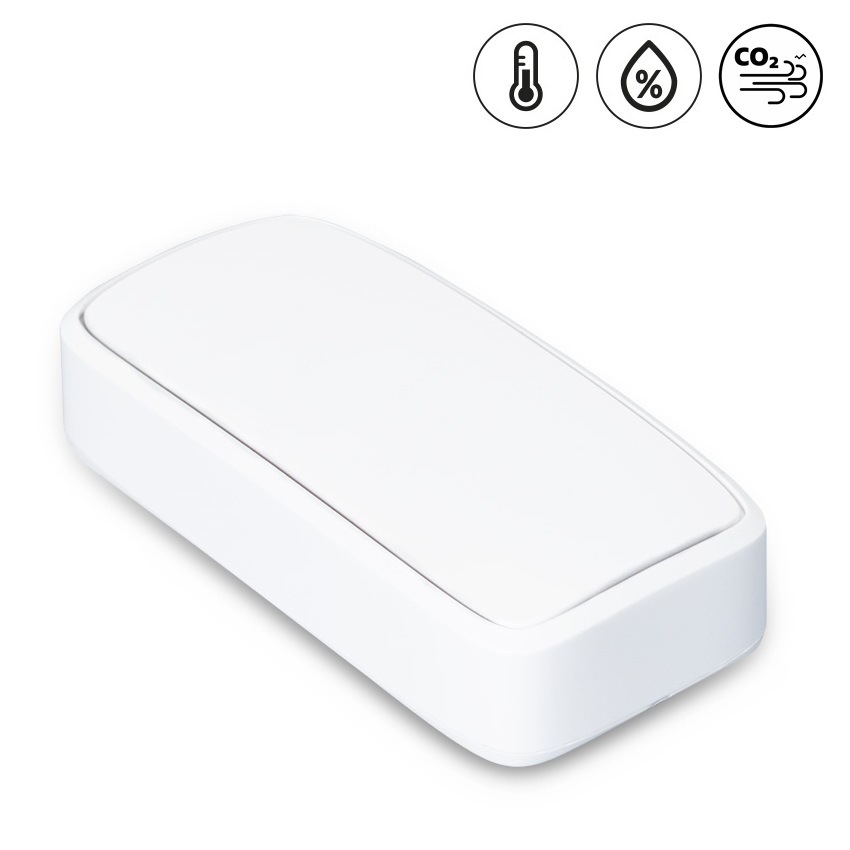

Efento NB-IoT wireless carbon dioxide (CO2) logger measures gas concentration and transmit its values over a cellular network (Narrowband IoT). On top of the gas concentration, the logger also measures temperature, humidity and barometric pressure. Sensors are also equipped with Bluetooth Low Energy interface, which allows quick and easy configuration with a smartphone. Efento NB-IoT CO2 sensors can be integrated with any cloud platform.

CO2 SENSOR
400- 5000 ppm
Accuracy: ±(40 ppm + 5 % of reading)
Measurement interval: 1 minute to 10 days, configurable
Memory size: 40 000 measurements

TEMPERATURE SENSOR
Range: -35° to 70°C
Accuracy up to 0.25°C in the -20°C to +70°C range and 0.5°C in the -35°C to -20°C range
Resolution: 0.1°C
Drift: -0.1°C / year
Measurement interval: 1 minute to 10 days, configurable
Memory size: 60 000 measurements

HUMIDITY SENSOR
Humidity: 0 to 100% RH
Accuracy: 4% in the range of 0 to 80% and 7% in the range of 81 to 99%

PRESSURE SENSOR
Range: 300 to 1100 hPa,
Absolute accuracy +/- 3 hPa at 0 to + 65°C, relative +/- 0.12 hPa at 0 to + 65°C, p = 800 – 900 hPa

NB-IoT
NB-IoT band: 1, 2, 3, 4, 5, 8, 12, 13, 17, 18, 19, 20, 25, 28, 66
3GPP: Release 13
Power: 20 dBm

BLUETOOTH LE
Communication: Bluetooth Low Energy (BLE)
Radio module frequency: 2,4 GHz
Power: 2,5 mW (4 dBm)
Range: up to 100 m (LOS)
Transmision period: 1 s

COMMUNICATION
Protocol: CoAP; Transmission interval: 5 minutes – 10 days, configurable

SOFTWARE UPDATES
Over the air (with delta mechanism); Over Bluetooth Low Energy

POWER SUPPLY
Replaceable AA batteries 2 x AA,
4200 mAh or 3 x AA, 6300 mAh.
Battery operating time: up to 10 years
USB 5V with 1000 mAh rechargeable battery

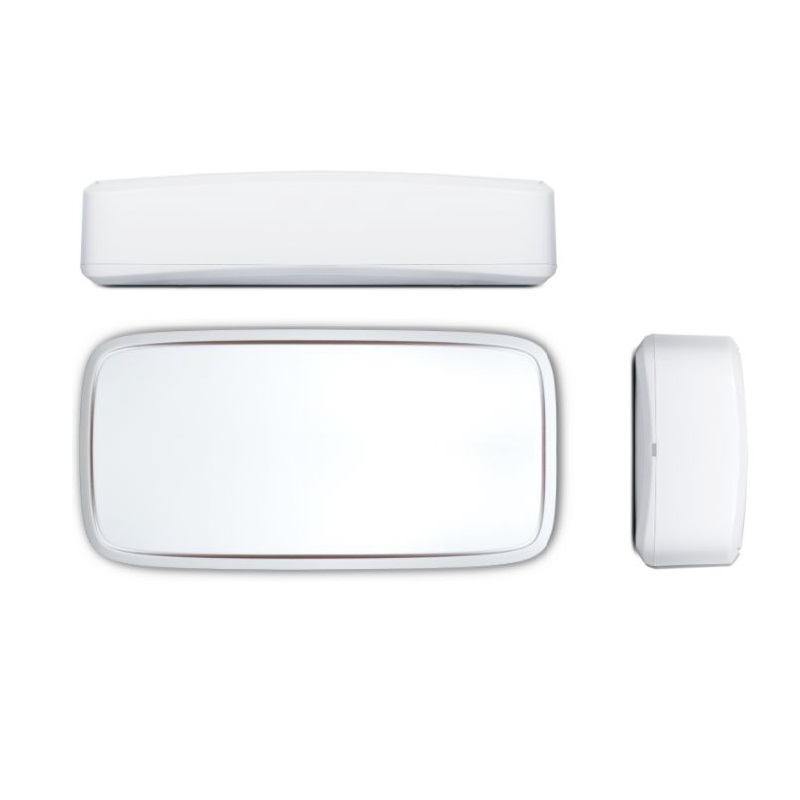

DIMENSIONS
27 x 71 x 71 mm
Weight: 100 g
