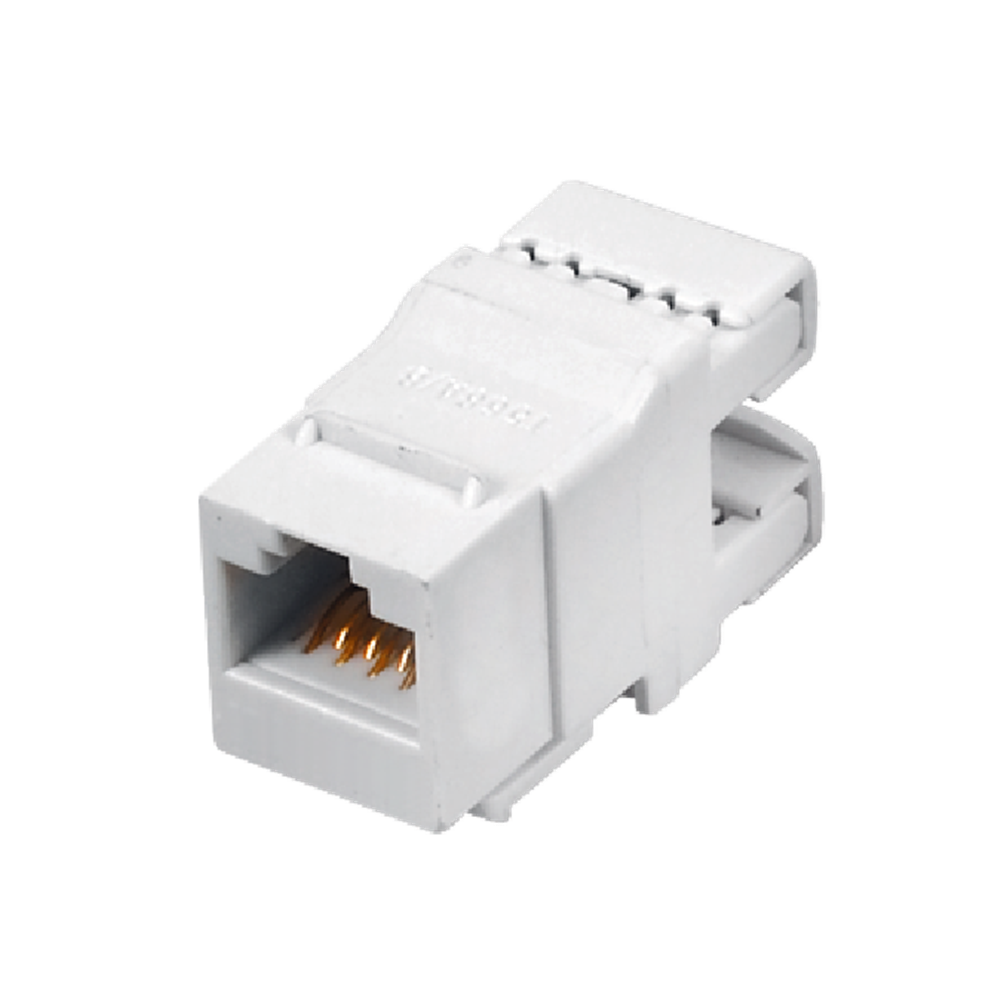

UTP KEYSTONE Jack RJ45 Cat. 6 Q-LANTEC unshielded transmission jack is designed to build both the user outlet and patch fields in indoor installations in horizontal and vertical data communication networks.

Through the use of special. universal attachments can be mounted in any elements (empty patch panels. wall boxes. floor etc.)
possibility of connecting cables AW 22-26 in sequences 568A/B
IDC LSA
based on the printed circuit board


GENERAL
Category 6
Class E / 250 MHz / 1 Gb/s
Shield NO
Type of tool LSA
BODY
Material thermoplastic ABS compliant with UL 94 V-0
SOCKET
Durability - 750 cycles
Coating contacts 1.25 μm gold on 2.5 μm nickel
Contact pressure force 100 g
Breaking strength 50N / 60 second
SLOT CONNECTOR
Sequences 568A/B
Contact materials fosforobrąz
Accepts wires 22-24AWG
Body thermoplastic ABS compliant with UL 94 V-0
PCB PLATE
Material laminate FR4 1.6 mm
ELECTRICAL FEATURES
Maximum current value 1.5 A
Insulation resistance 500 MΩ @ 100 Vdc
Resistance 20 mΩ
IDC resistance 2.5 mΩ
POE
Standards PoE / 802.3 af (802.3at typ 1)
TEMPERATURE RANGE
Storage -40oC do +70oC
Work -10oC do +60oC
