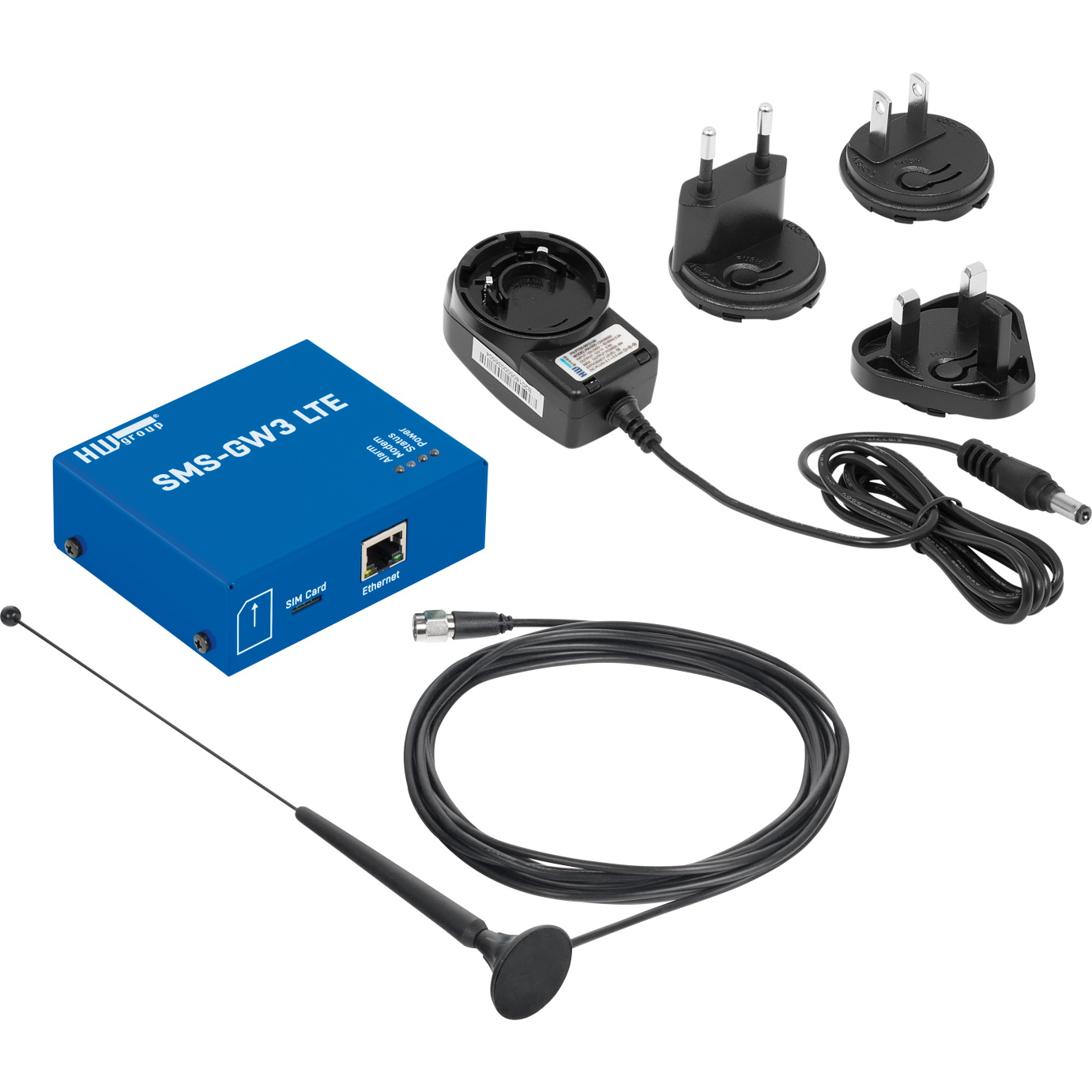

SMS-GW3 LTE: LTE gateway for sending SMS messages from HWg devices


SMS-GW3 LTE is a central gateway that allows HWg devices, SensDesk portals, and third-party software/hardware to send text messages (SMS) and make voice calls alerts.

1) Device-to-GW
Customers with HWg monitoring devices are using one SMS-GW for alerting. Several HWg devices (LAN Thermometer / Energy monitoring) can connect to a single SMS-GW to send alarm alerts (SMS/voice calls) to different phone numbers. No extra software is needed, and it works over the local network using Box-2-Box (Peer-to-Peer) communication.

2) Portal-to-GW
Any installation of SensDesk portal can use the SMS-GW for alerting. The gateway have to be accessible from the portal (either through a VPN or a public IP address).

3) 3th party SW to GW
For third-party (non HWg products) users, the SMS-GW can be usefule gateway for alerting through several Open API.

HTTP GET
netGSM (SOAP documented protocol)
General SNMP (Write)


Features:
Connectivity: Ethernet (10/100 Mbit/s), LTE
LTE antenna: External 3m cable, SMA
Internal memory for outgoing SMS queue: 100 messages
SMS/Calls GW for all HWg devices (RME)
SMS/Calls GW for any SNMP software
SMS/Calls GW for any NAGIOS (plugin by NETWAYS)
Open API: SNMP, XML, netGSM (http, SOAP)
Supports the -SMS + Ring- function for combined SMS and ring notifications.
Mechanical: 76 x 93 x 28 mm, wall-mountable, fits on a DIN rail

Applications and usage:
Single SMS gateway for the entire network with an easy-to-use web-based configuration.
Send text messages without the need for any additional software.
Configure the recipients phone number directly in the sending device.0
