Port

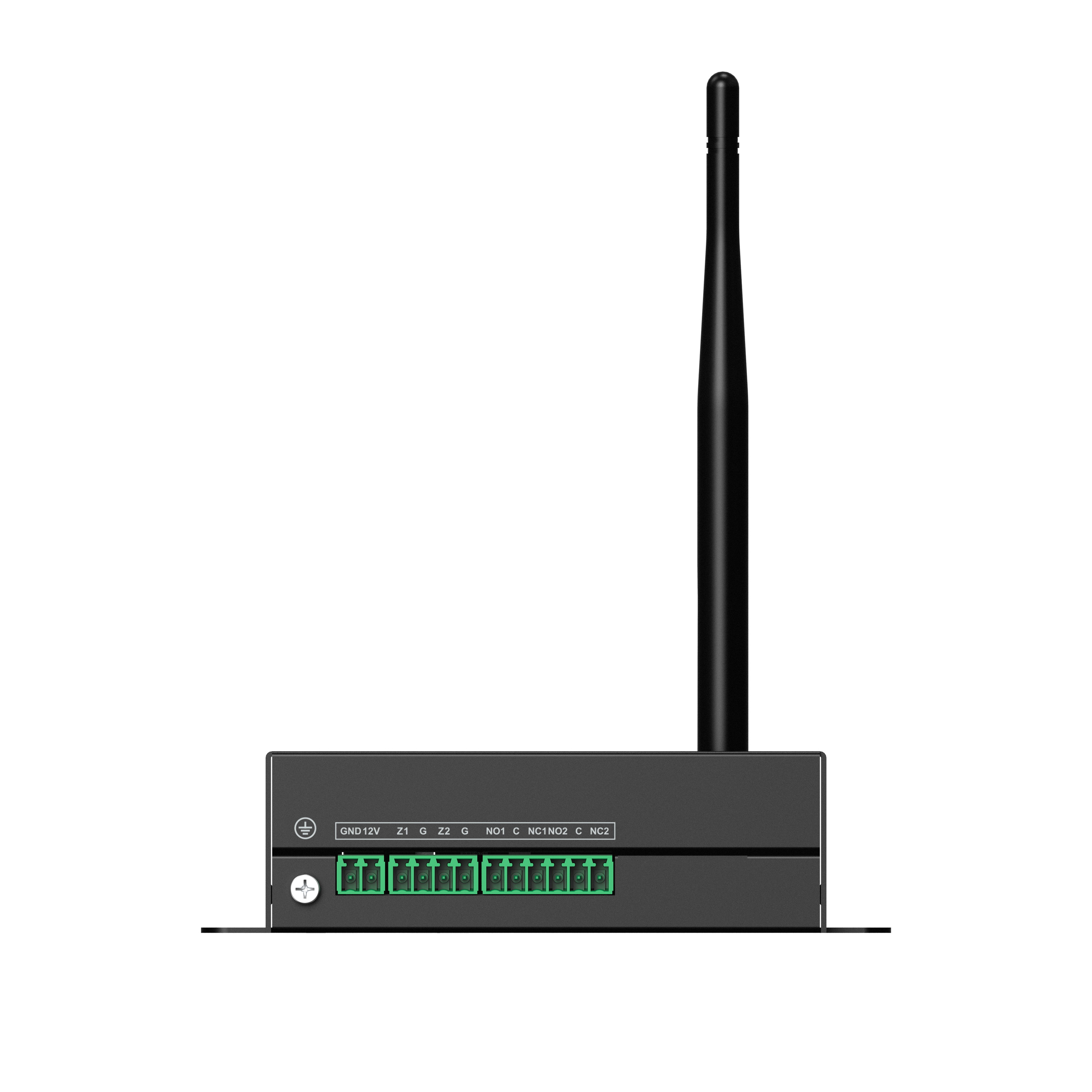

Alarm Input
2-channel dry contact input onboard
Multiple types of zone loops: NO/NC, 1EOL, 2EOL, 3EOL
3 EOLR values: 2.7 K, 4.7 K and 6.8 K
Alarm Output
2-channel relay output onboard (≤30 VDC, 1 A, resistive load only)
Wireless Peripheral
A single module supports up to 16 wireless peripherals, including sirens (no more than 6), detectors (door detectors, IR, panic buttons, single-channel input modules), and keyfobs.
Network Port
10 Mbps/100 Mbps self-adaptive Ethernet port, standard PoE

Function
Indicator Light
3×
Power supply indicator: Red
Wireless connection indicator: Green
Paring indicator: Green
Button
2×, a pairing button and a button to restore the device to its factory settings
Offline Cache
Max. 1024 buffer data
Remote Update
Yes
Network Protocol
TCP/IP
Tamper
Case tamper detection
Signal Strength
Detects the wireless signal strength through the alarm controller webpage
Power Failure Protection for Configured Parameters
Yes

Technical
Scenario
Indoors
Operating Current
130 mA
Alarm Current
160 mA

Wireless
Carrier Frequency
868.0 MHz–868.6 MHz
Communication Mechanism
Two-way communication
Communication Distance
Up to 2 km (6,561.68 ft) in an open space
Encryption Mode
AES128
Frequency Hopping
Yes

General
Power Supply
12 VDC/PoE (802.3af)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–90% (RH)
Product Dimensions
126.0 mm × 57.0 mm × 33.2 mm (4.96- × 2.24- × 1.31-)
Net Weight
230 g (0.51 lb)
Gross Weight
380 g (0.84 lb)
Installation
Wall mount
Casing Material
Electro-galvanized sheet
Certifications
CE
Anti-corrosion Level
Basic Protection
Storage Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity
10%–90% (RH)
Packaging Dimensions
187.0 mm × 164.0 mm × 58.0 mm (7.36- × 6.46- × 2.28-)
