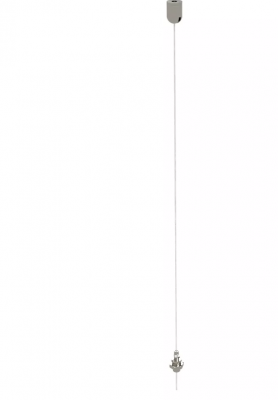

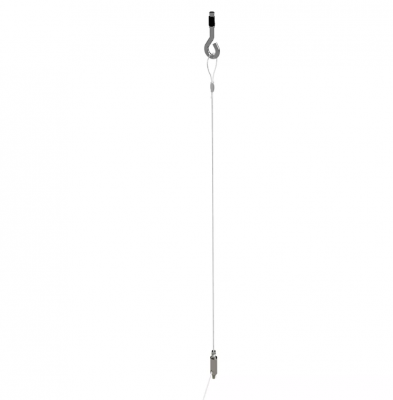

Architectural support, manufactured from bright nickel-plated brass and designed for lightweight applications. Used to create an inverted Y-shape wire support, ideal for fixtures with wide fixing centres such as light fittings. APPLICATIONS SUITABLE AREAS OF USE INCLUDE, BUT ARE NOT LIMITED TO: Lighting Light duty signage FEATURES Allows for one single suspension point from the ceiling. Fully lockable plunger for safety and security. Side exit for main vertical wire support which allows for height adjustment at service level. Can be supplied with a variety of ceiling fixings. Available in kit format – lengths from 1-3 metres. Lockable grub screw to secure/adjust toggle legs (requires 3 mm Allen key/bit). INSTALLATION Unscrew the lockable plunger anti-clockwise allowing it to actuate, do not unscrew it fully Feed vertical wire support through the top of the plunger until it appears at the side exit Pull wire through the side exit allowing a tail of 75 mm minimum Now screw the lockable plunger clockwise to lock off the device Leveling the fixture: Use a 3 mm hex key bit to loosen the grub screw located in the base of the device, do not unscrew it fully Move the inverted Y shape wire until the fixture is level Tighten the grub screw clockwise to lock Y shape wire into place, do not over tighten
