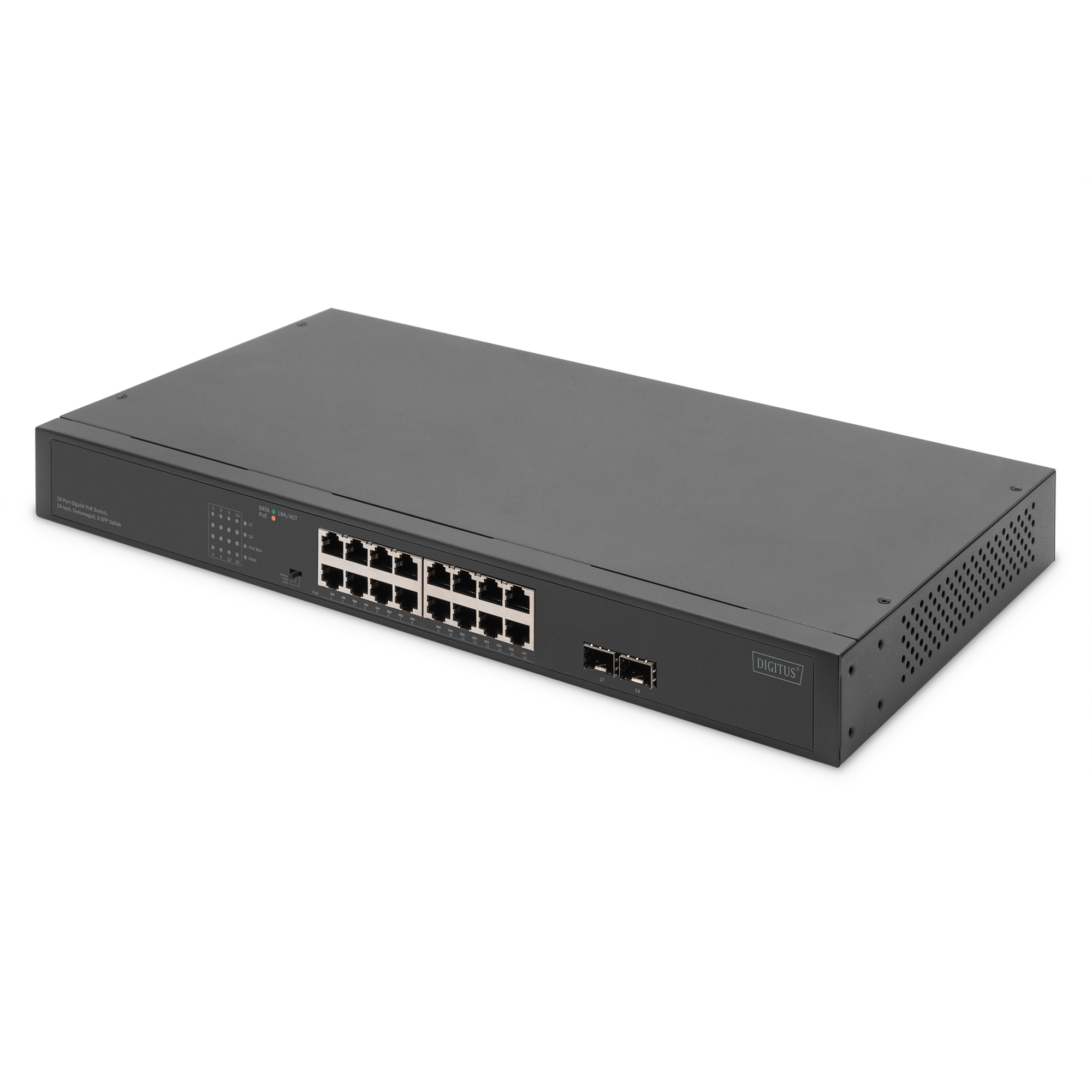

DIGITUS 16-Port Gigabit Netzwerkswitch, 19 Zoll, unmanaged,2 Uplink Ports, SFP
Product number: DN-95347-2
EAN: 4016032492023
16-Port Gigabit + 2-Port Gigabit SFP Unmanaged PoE Switch

Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 250 W

Support IEEE802.3af/at Standard
Single port output power up to 30W
Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
Support port power supply prioritization, guarantee the continuous power supply of key nodes
Panel indicators monitor working status and help fault analysis
Support VLAN
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

DESCRIPTION
The DN-95347-2 PoE switch offers an outstanding solution for the efficient power supply of network components that support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. The automatic detection and identification of standard PoE receiving devices makes the power supply intelligent and prevents potential damage from non-standard or conventional devices. By prioritizing the port power supply, the module ensures a continuous power supply for critical network nodes. The panel indicators allow convenient monitoring of the working status and assist in fault analysis. The module also supports VLAN and CCTV functions to maximize flexibility in network applications. With flow control for full-duplex operation and back pressure for half-duplex operation, the module optimizes data transmission efficiency. Overall, the DN-95347-2 PoE switch offers a powerful, intelligent and reliable solution for the power supply of network components that meets todays requirements for modern network infrastructures.

TECHNICAL DETAILS
Support IEEE802.3af/at Standard
Single port output power up to 30W
Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
Support port power supply prioritization, guarantee the continuous power supply of key nodes
Panel indicators monitor working status and help fault analysis
Support VLAN
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
Mainboard, Power supply, PoE (three in one)
PoE Standard: IEEE802.3af/at
PoE Port: Port 1~16
PSE Power on RJ-45: Mode A 1/2(+),3/6(-)
PoE Port Output, Voltage: 55V DC, 30W max
PoE Power Budget: 250W
Power supply: 260W
Input Power Supply:AC 100-240V, 50/60Hz
Key supply: VLAN
Forwarding Mode: Storage-and-Forward
Switching Capacity: 36Gbps
MAC address table: 8K, Auto--learning, Auto-aging
Jumbo frames: 9216Byte
Packet Buffer: 4.1Mbit
Forwarding Rate: 26.78Mpps
Operation Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operation Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
Dimensions(L*W*H): 440*207*44mm
Fan Qty:2
