Features
1. DDM Duplex LC Connector
2. Max. Power Consumption 0.8W
3. For Campus Networks, Enterprise LAN Networks, and other optical links
4. Compatible with 100+ Vendors
5. Compliant with SFF-8472 and SFP MSA
Application
Campus Networks, Enterprise LAN Networks
Parameters Table

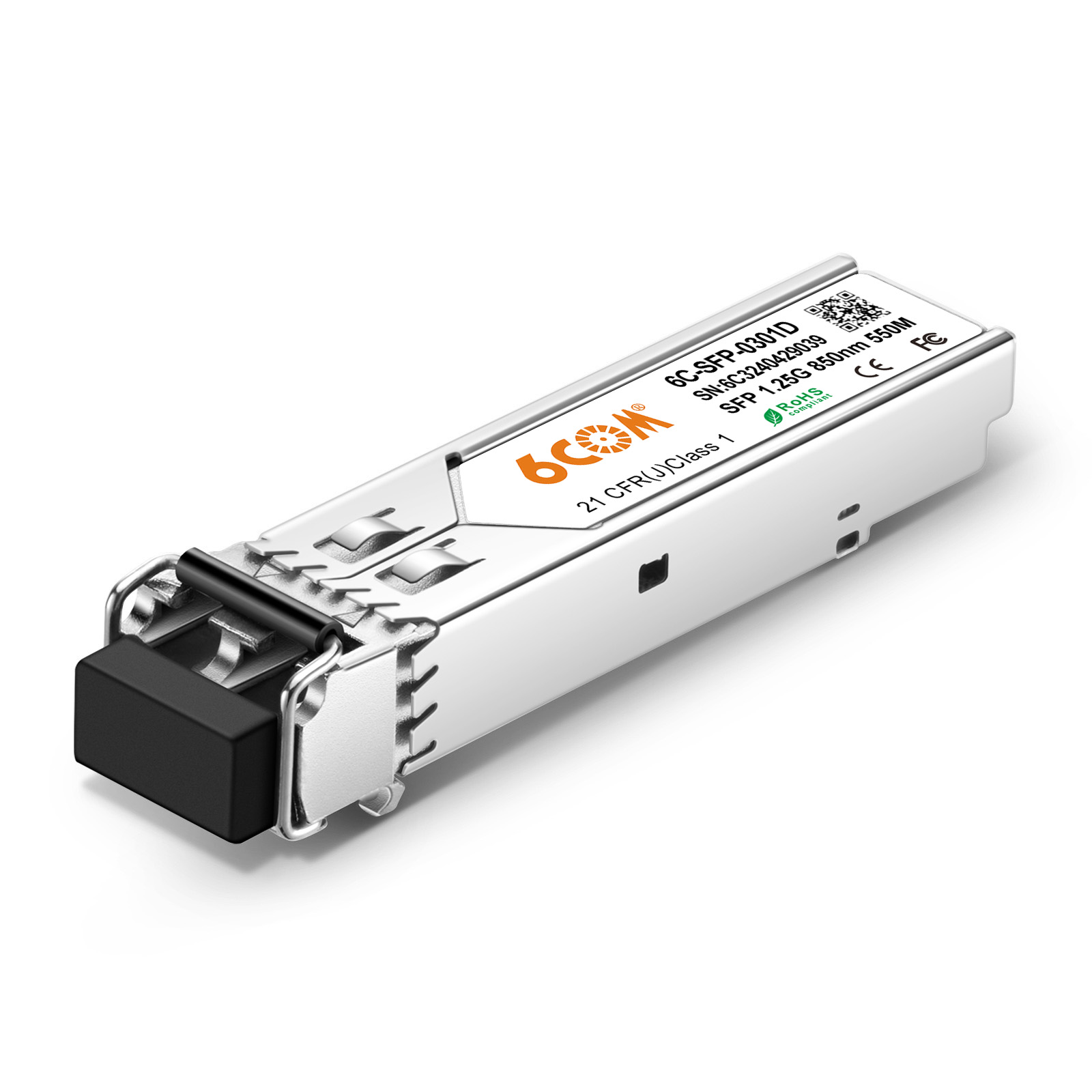

Part Number 6C-SFP-0301D Vendor Name 6COMGIGA
Form Factor SFP Data Rate 1.25Gbps
Wavelength 850nm Distance 550m
Connector LC Duplex Cable Type OM2 MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power -9.5 ~ -3dBm Receiver Sensitivity - -18dBm
Power Consumption - 0.8W Temperature 0 to 70°C (32 to 158°F)
DDM Support Bit Error Ratio (BER) 1E-12
Protocols IEEE 802.3z, SFF-8472, SFP MSA Compliant Warranty 3 Years
