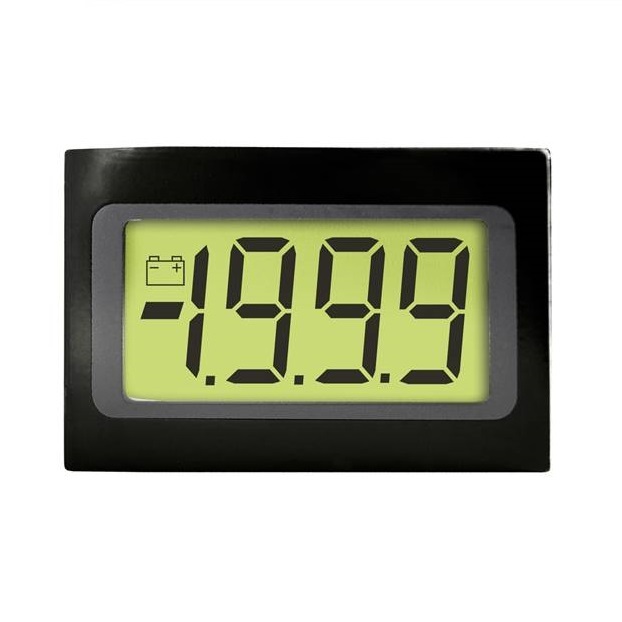

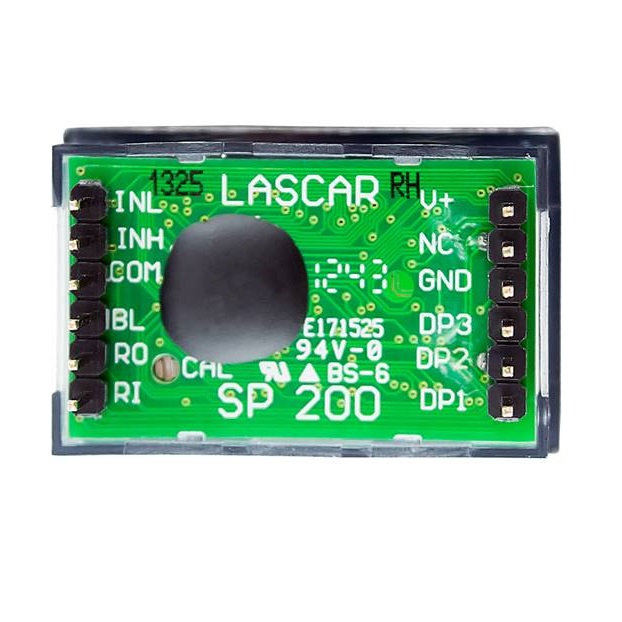

This ultra low profile panel meter features a 3½ digit LCD with 9.75mm (0.38-) digit height and green LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into two 6-way SIL sockets and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 200 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.

Accuracy (overall error): 0.1 % (±1 count)
Operating temperature: 0 to 50 °C
Sample rate: 2.5 samples/sec
Supply Voltage: 3.5 to 5.25 V d.c.
Supply Current: 350 uAgns.
