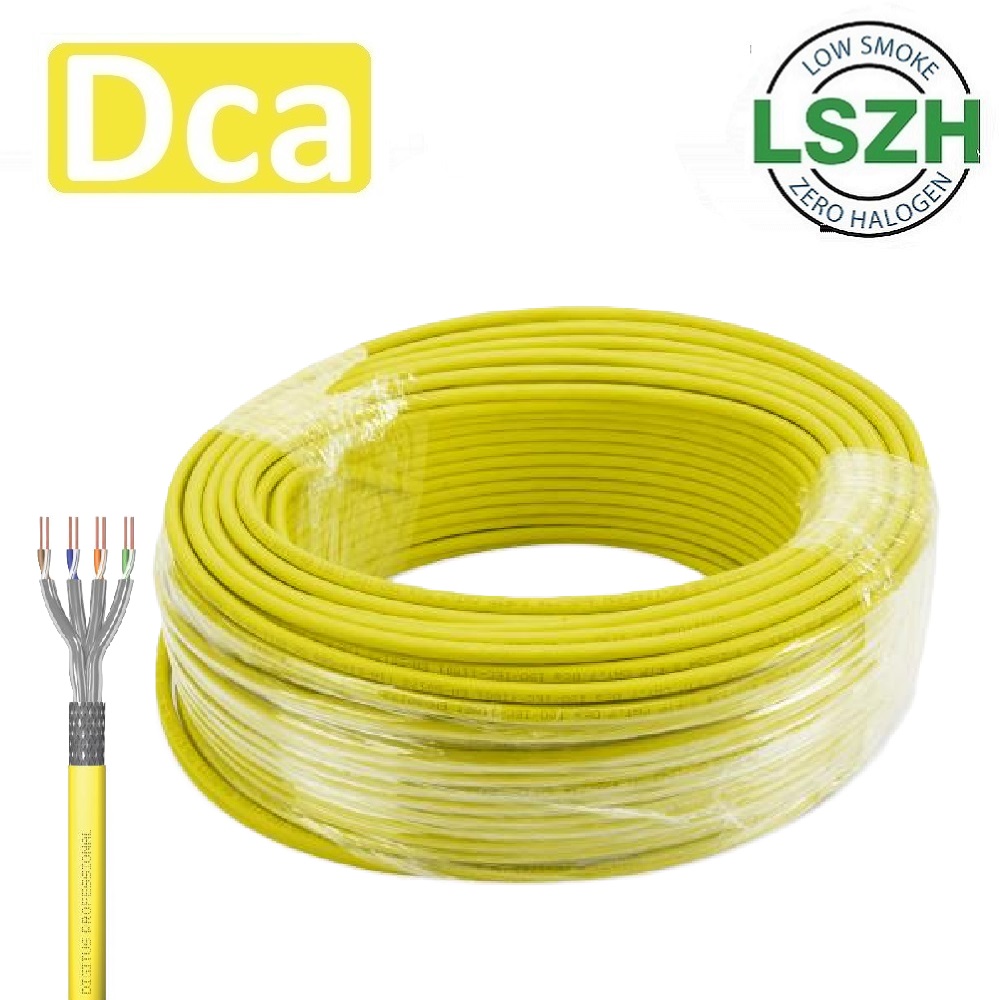

DIGITUS Cat. 7A S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1
Product number: DK-1743-A-VH-1
EAN: 4016032462828
CAT 7A S-FTP installation cable, 1500 MHz Dca, AWG 22/1, 100 m ring, SX, yellow

Future-oriented standards and high-end quality for your network.

10 GBit Ethernet
1500 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
BauPVO category Dca-s1a d1 a1

Description

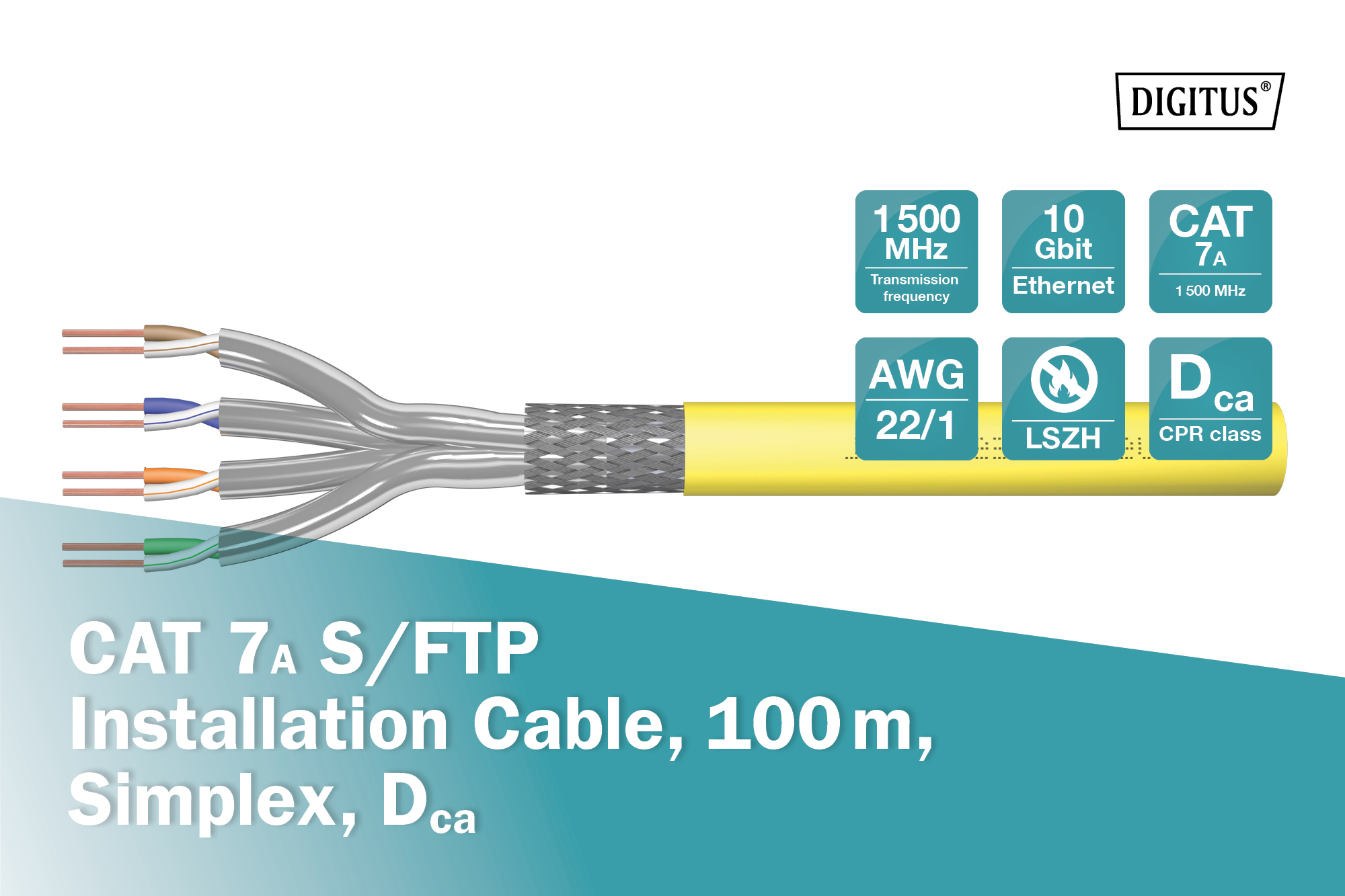

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Technical details

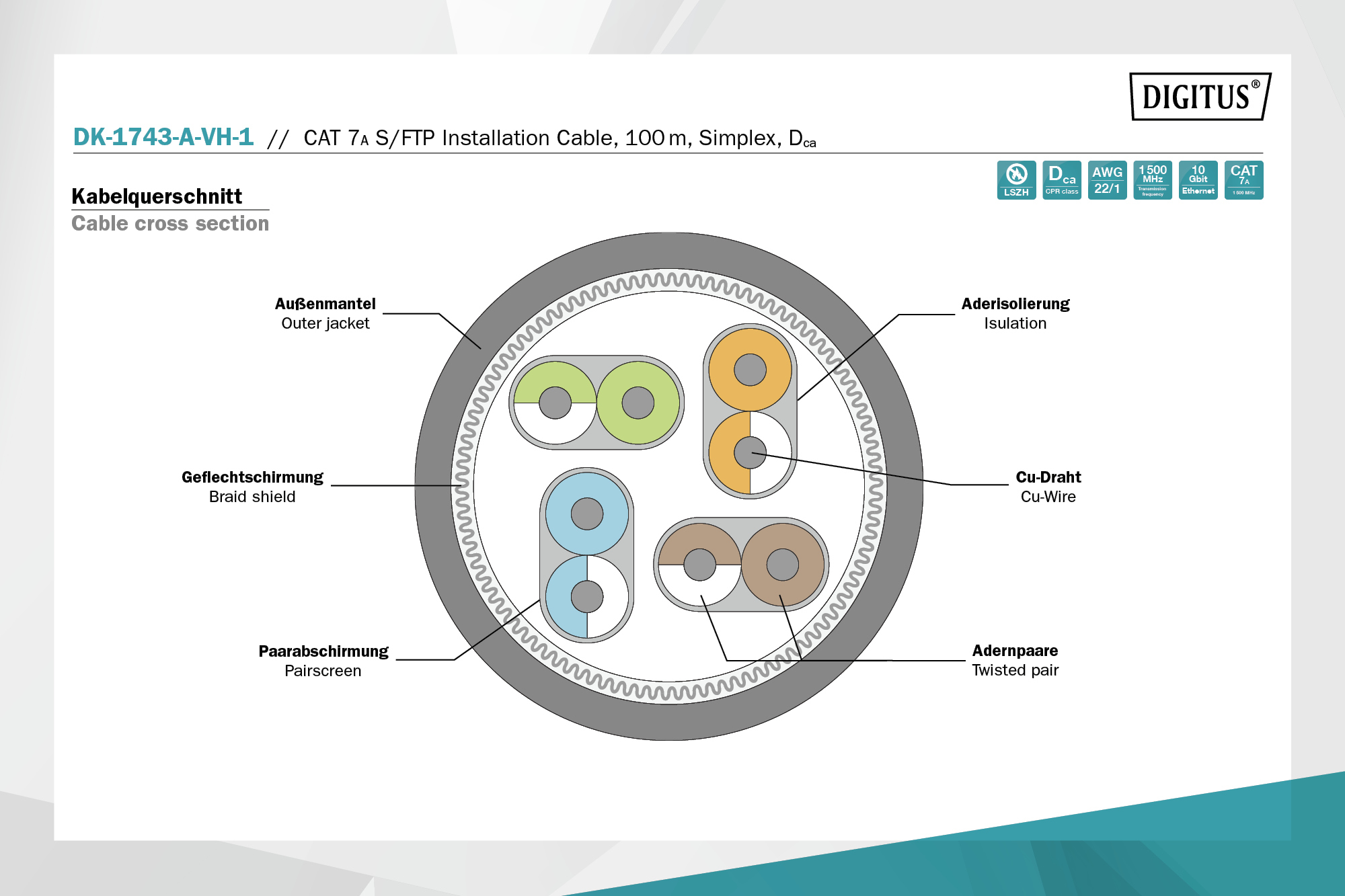

Physical properties:
Conductor: Bare copper wire, AWG 22/1
System(s) of assessment and verification of constancy of performance: System 3
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
Overall shielding: tinned copper braiding
Outer sheath: Dca-s1a d1 a1acc. to EN 50575; LSZH
Outer sheath thickness (nominal): 0.60 mm (Dca); 0.60 mm (Cca)
Outer sheath color: Yellow (RAL 1028)
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to +60 °C
Operating temperature range: -20 °C to +60 °C
Installation temperature range: 0 to +50C
Outer diameter (nominal): 7.8 mm (Dca); 7.8 mm (Cca)
Weight (kg/km): 65 kg (Dca); 65 kg (Cca)
Electrical properties:
Impedance: 100±5 Ohm @ 1-1000 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
Loop resistance: 147 Ohm/Km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Phase delay: 450 nS/100 m max.
Time delay: 10 nS/100 m max.
Separation class: -d- according to EN 50174-2
NVP: 79%
Flame spread: EN 60332-1-2 (LSOH-PVC)
Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
Smoke density: EN 61034-2
Assortment: Twisted Pair Installation Cables
Category: CAT 7A
Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: Dca
Length: 100 m
Color: yellow
Jacket: LSOH
Structure: 4 x 2 AWG 22/1, solid twisted pair
