DIGITUS 4 Port Gigabit Network PoE Switch, Industrial, Unmanaged, 1 RJ45 Uplink
Product number: DN-651120
EAN: 4016032458876
Industrial 4-Port Gigabit PoE Switch + 1 uplink DIN rail, extended temp. range
Robust and durable industrial solutions with integrated Power over Ethernet (PoE) function

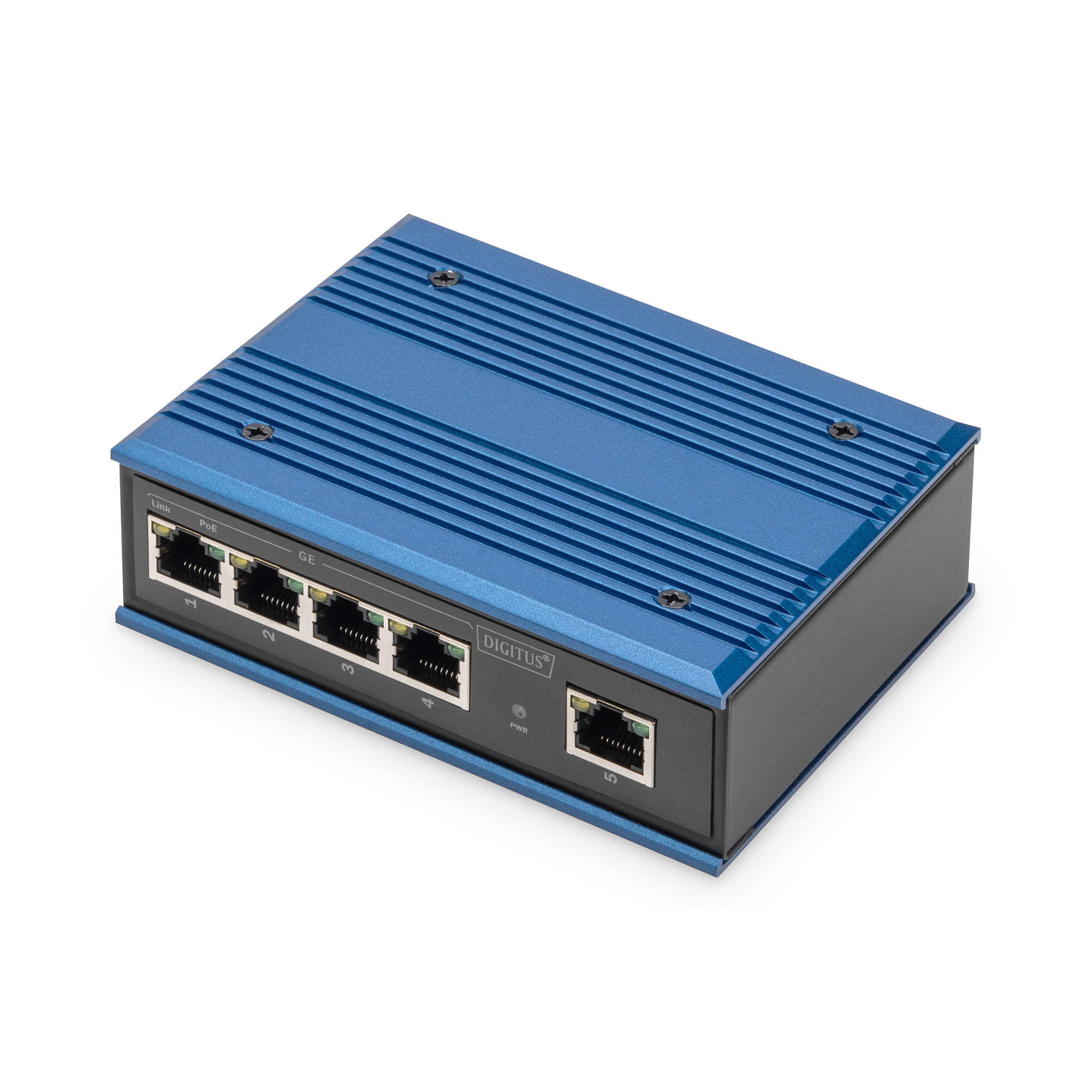

Industrial 4-Port Gigabit PoE Switch + 1 uplink port

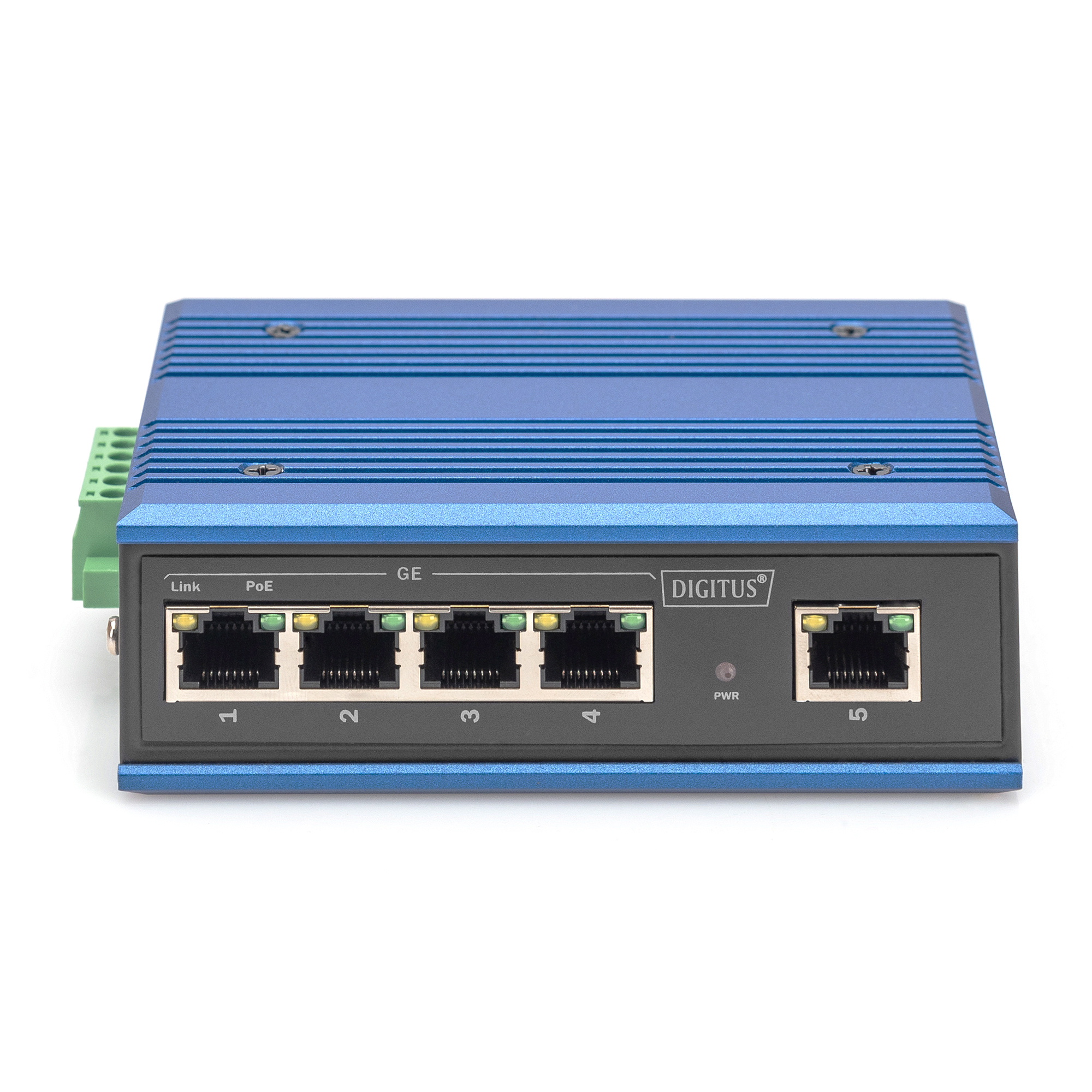

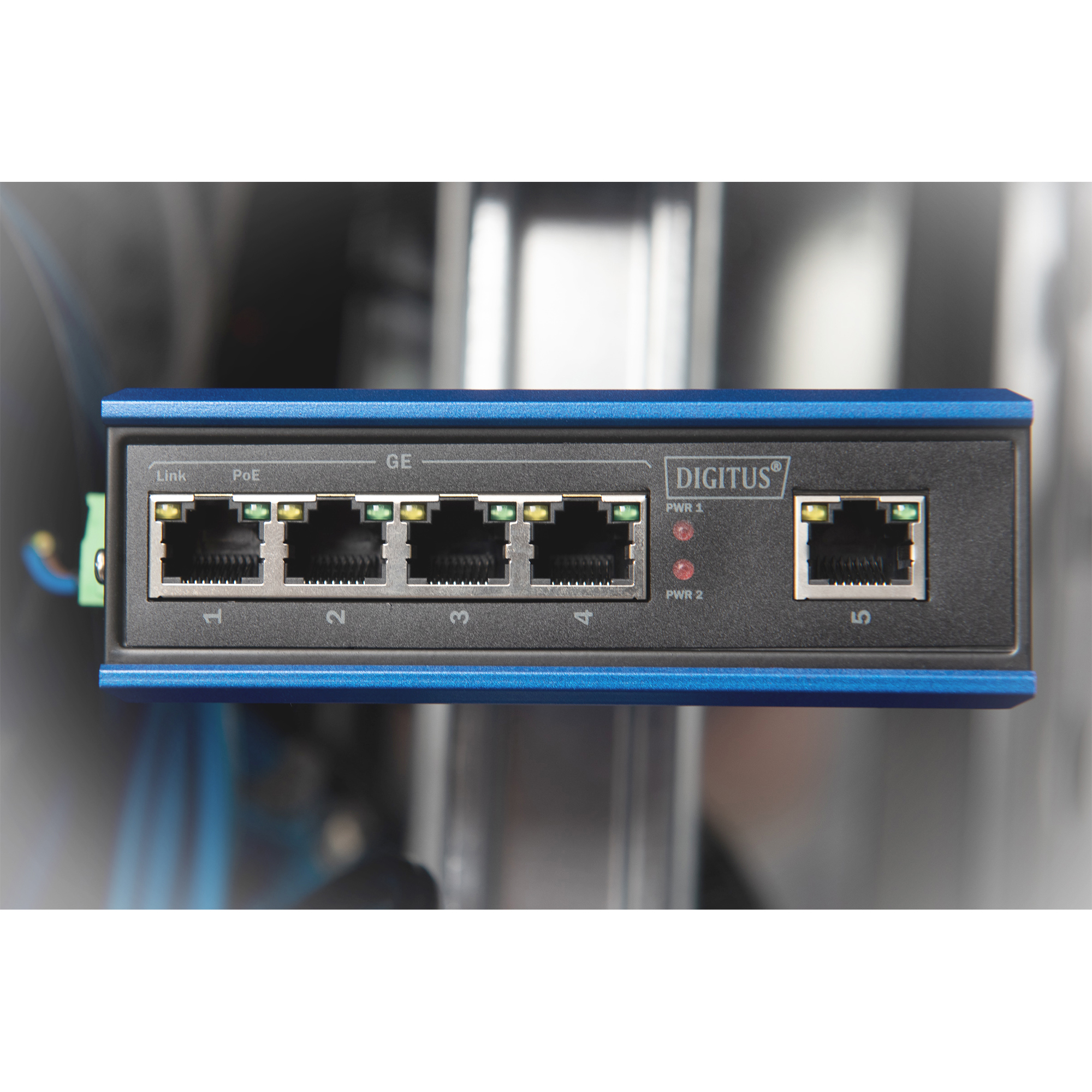

4 x 10/100/1000Base-TX Ethernet PoE ports
1 x 10/100/1000Base-TX Ethernet uplink port
DESCRIPTION
The DIGITUS® Industrial Gigabit Switch is designed for harsh environments where it is exposed to moisture, temperature fluctuations and vibration. With a temperature range of -40°C to 80°C, the Industrial Gigabit Switch can be used under the most adverse conditions. The PoE ports with IEEE802.3af/at support can supply PoE capable devices with up to 30 W per port. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity, the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.
TECHNICAL DETAILS

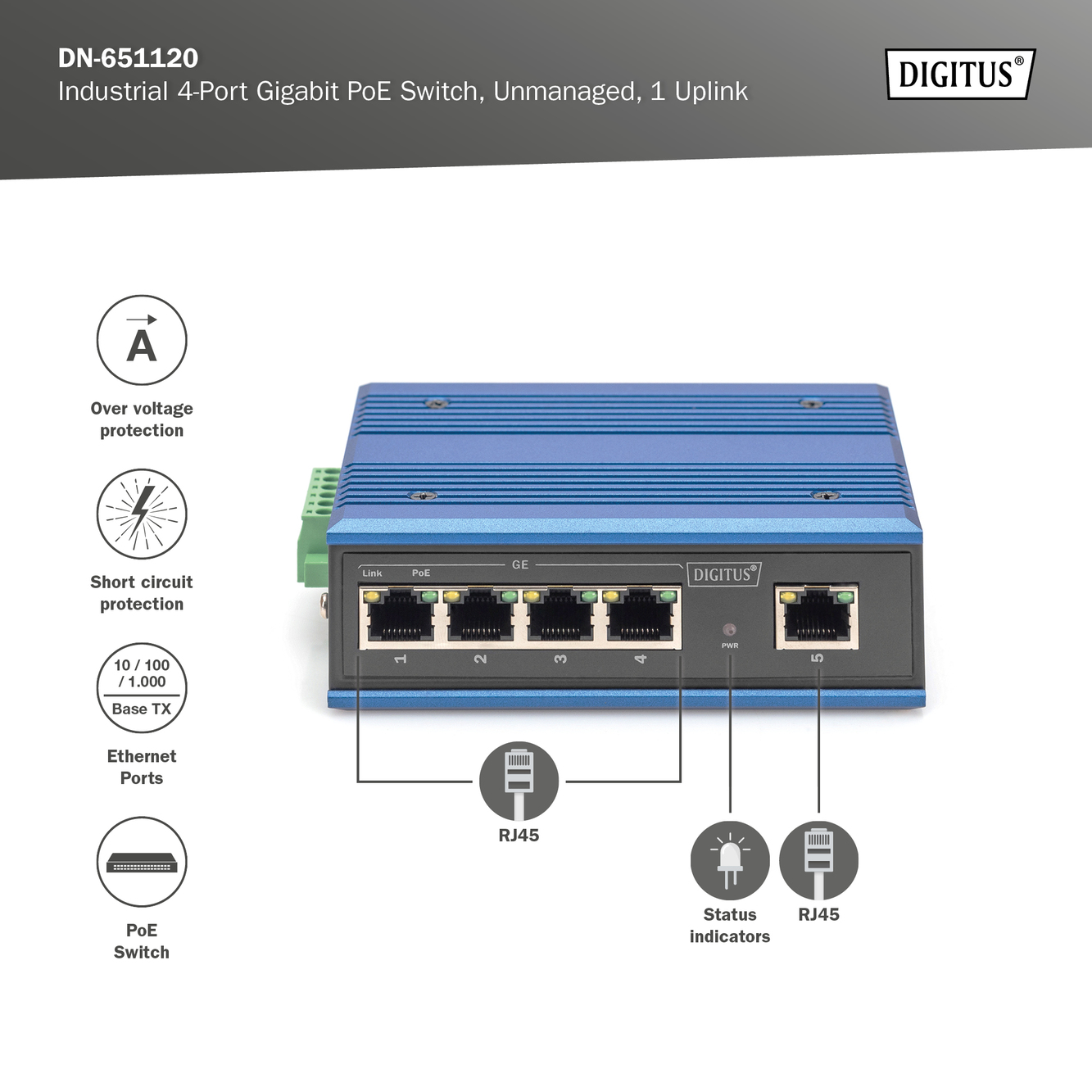

4 x 10/100/1000Base-TX Ethernet PoE Ports
1 x 10/100/1000Base-TX Ethernet uplink port
Supports IEEE802.3af/at
Automatic cable detection - Auto MDI / MDI-X function
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3ab 1000BaseTX,IEEE802.3af, IEEE802.3at
IEEE802.3x Flow Control und Back Pressure
Store and forward technology for optimized data transfer
Automatic speed and half/full duplex recognition/adjustment
Backplane with 14 Gbps
Supports up to 2K MAC addresses
Compact, robust metal housing
Excellent short-circuit protection
Lightning and overvoltage protection

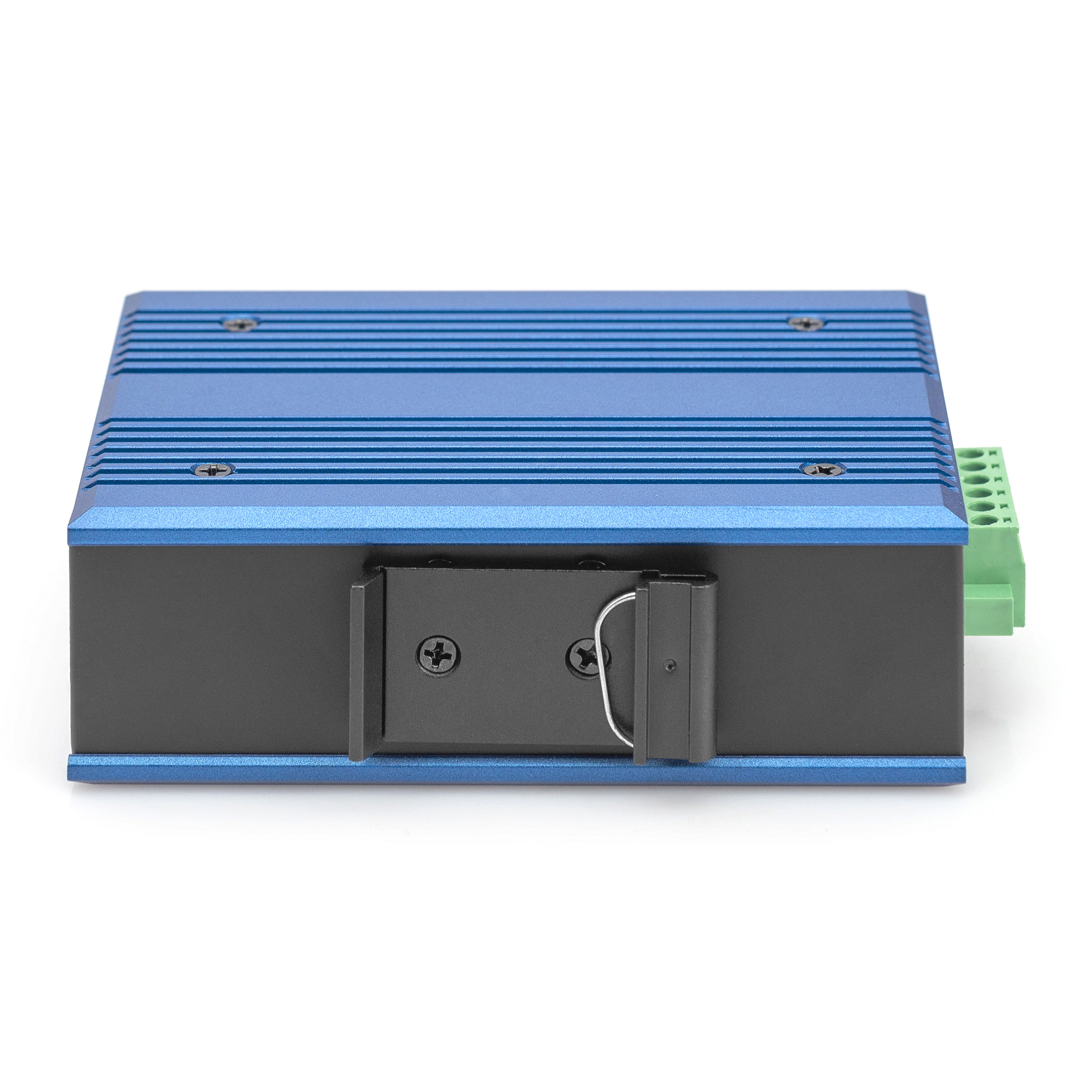

Suitable for DIN rail (top-hat rail) mounting

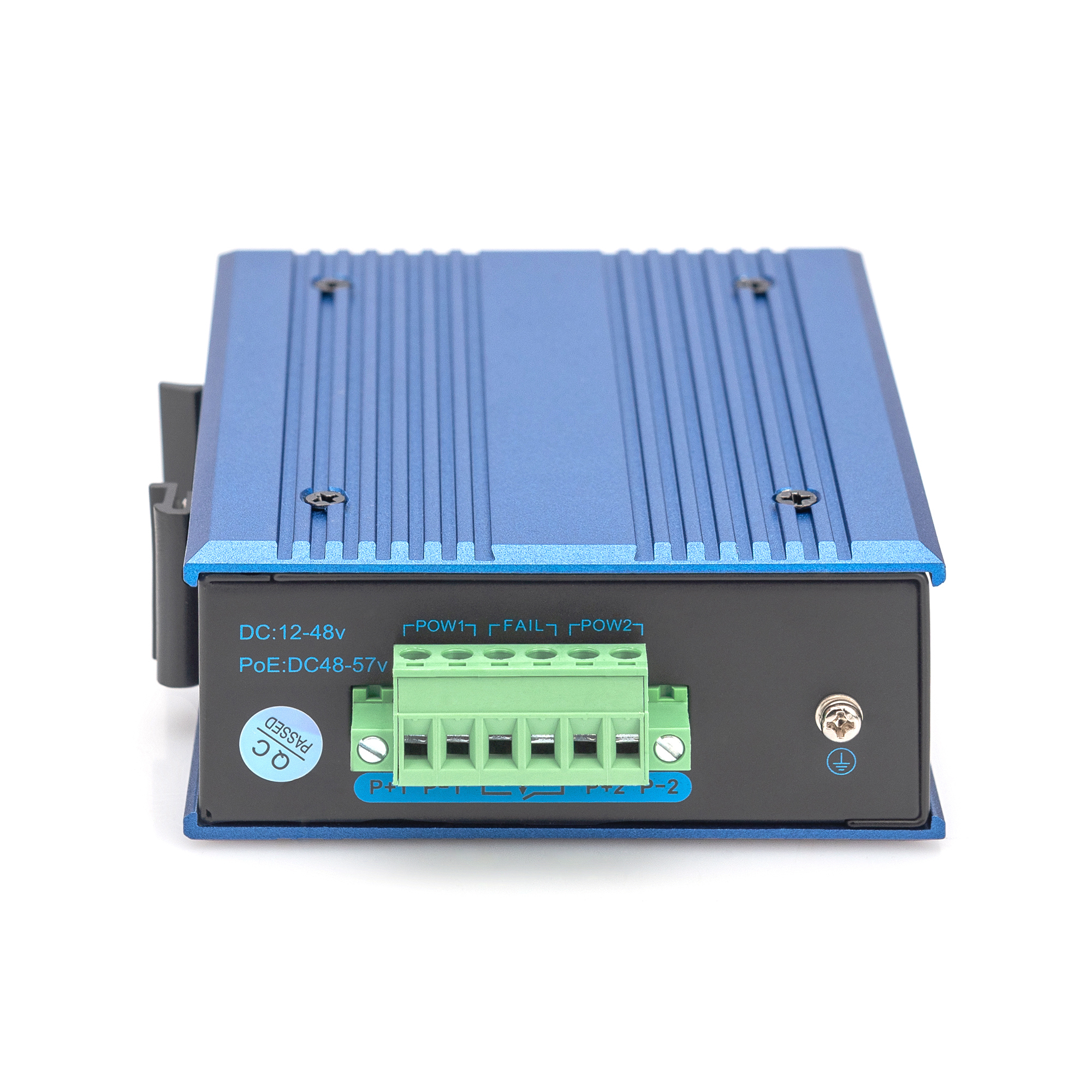

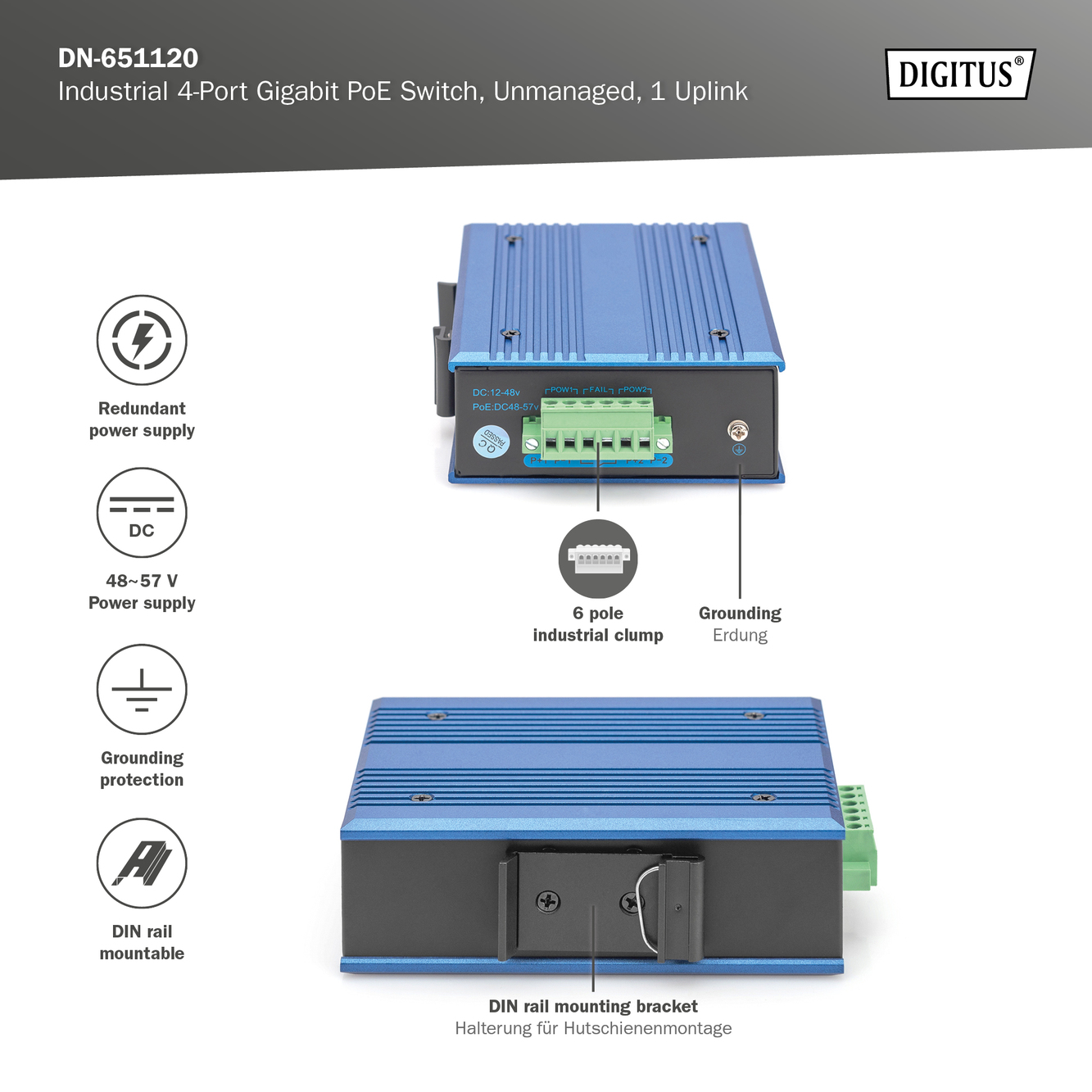

Redundant power supply: 48~57 V DC, redundant power supply with reverse polarity protection function
Extended operating temperature range, -40 °C ~ +80 °C
Removable terminal connection
Protection class: IP40
