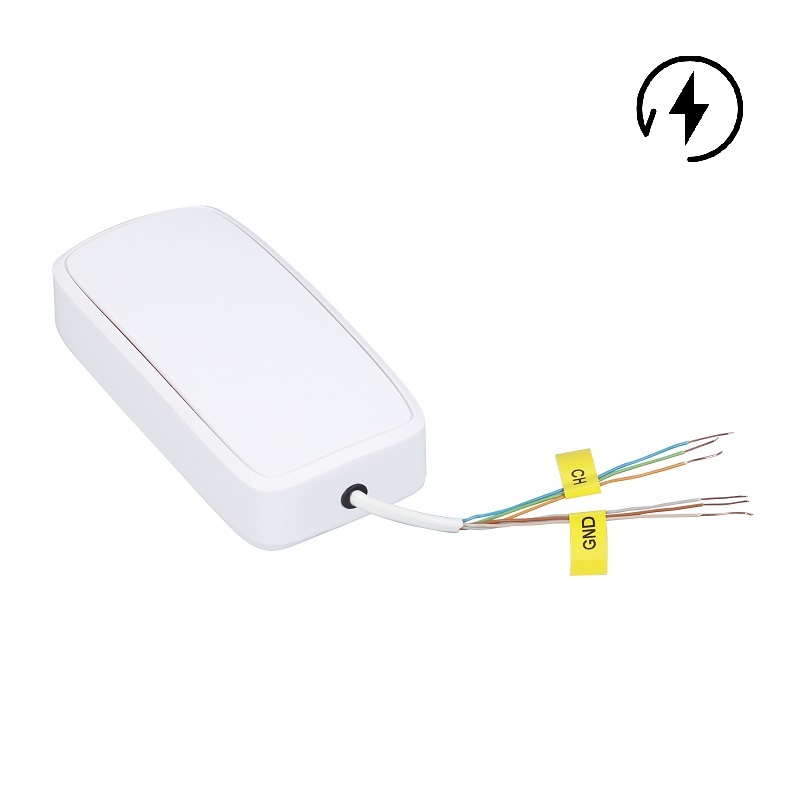

Electricity pulse counter is used to remotely monitor electricity consumption in order to control related expenses and quickly detect anomalies. You can connect it to any meter equipped with Standard output (SO). The solution is dedicated for both enterprises and households. The sensor can simultaneously work with up to three electricity meters. By default, each counted pulse represents one watt-hour (Wh). Data is presented in the form of power consumed by devices (W) in addition it is possible to generate a report with total consumption (Wh / kWh) in a selected period.

Efento NB-IoT pulse counters transmit the data over cellular network (Narrowband IoT) and do not require any additional devices (router, gateway, etc.). Pulse counters are also equipped with Bluetooth Low Energy interface, which allows quick and easy configuration with a smartphone. Efento NB-IoT pulse counters can be integrated with any cloud platform.

VERSATILITY
The counter can cooperate with any device equipped with a pulse output
UP TO 3 CHANNELS
Simultaneous operation with up to 3 devices

NB-IoT
NB-IoT band: 1, 2, 3, 4, 5, 8, 12, 13, 17, 18, 19, 20, 25, 28, 66
3GPP: Release 13
Power: 20 dBm

BLUETOOTH LE
Communication: Bluetooth Low Energy (BLE)
Radio module frequency: 2,4 GHz
Power: 2,5 mW (4 dBm)
Range: up to 100 m (LOS)
Transmision period: 1 s

COMMUNICATION
Protocol: CoAP; Transmission interval: 5 minutes – 10 days, configurable

SOFTWARE UPDATES
Over the air (with delta mechanism); Over Bluetooth Low Energy

MINIMUM PULSE DURATION
5 millisecond
MAXIMUM PULSE DURATION
500 millisecond

SUPPORTED COUNTERS
NO (Pull-up 3.6V)

POWER SUPPLY
Replaceable AA batteries 2 x AA,
4200 mAh or 3 x AA, 6300 mAh.
Battery operating time: up to 10 years
USB 5V with 1000 mAh rechargeablebattery

DIMENSIONS
27 x 71 x 71 mm
Weight: 100 g
