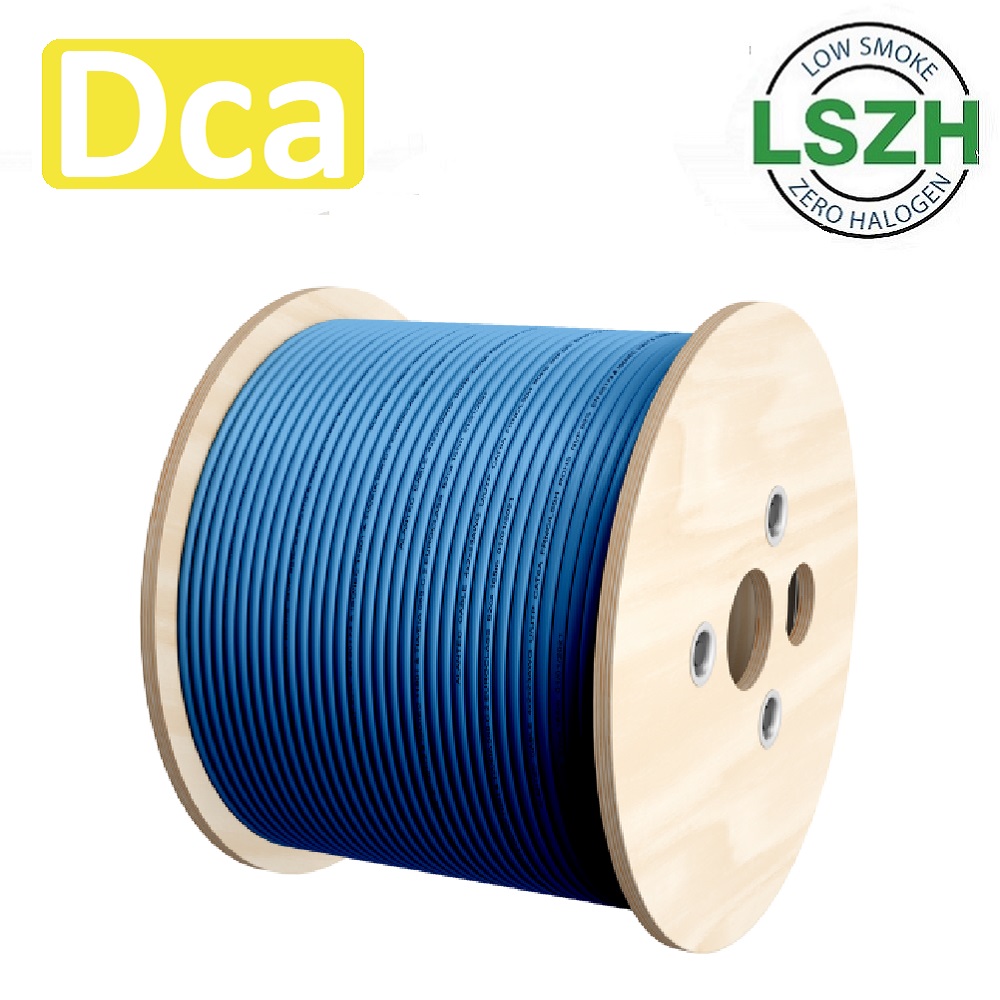

Cable S/FTP (STP) Cat.8 LSOH 4x2x22AWG Dca 500m (BLUE coating) WireArte System Warranty

Technical Specifications
CONSTRUCTION AND ELECTRICAL PARAMETERS
Category 8
Class I (2000MHz)
Cross section AWG 4x2x22AWG
Conductors single stranded copper, diameter 0,64mm (22AWG)
Insulation polyethylene
CPR fire classification (Euroclass) Dca
Stranding element 4 twisted pairs, each pair wrapped with polyester film, all shielded with braided Cu wires, 50% coverage
Shield pairs shielded with polyester foil covered with aluminum layer, under the shield a ground wire made of tin-plated copper wire of min. 0,4 mm diameter, the center additionally shielded with Cu wire braid.
Coating halogen-free flame retardant material, with limited release of smoke and corrosive gases (LSOH/FRNC)
PoE 802.3 at
Color blue
MECHANICAL PROPERTIES
Bending radius 4 x outer diameter
Max. pulling force 80 N
Temperature range during use -30°C to + 85°C
Temperature range during installation 0°C to + 50°C
Outer diameter 8 mm (±2%)
Weight kg/km ~80kg
Packing spool (500m)
