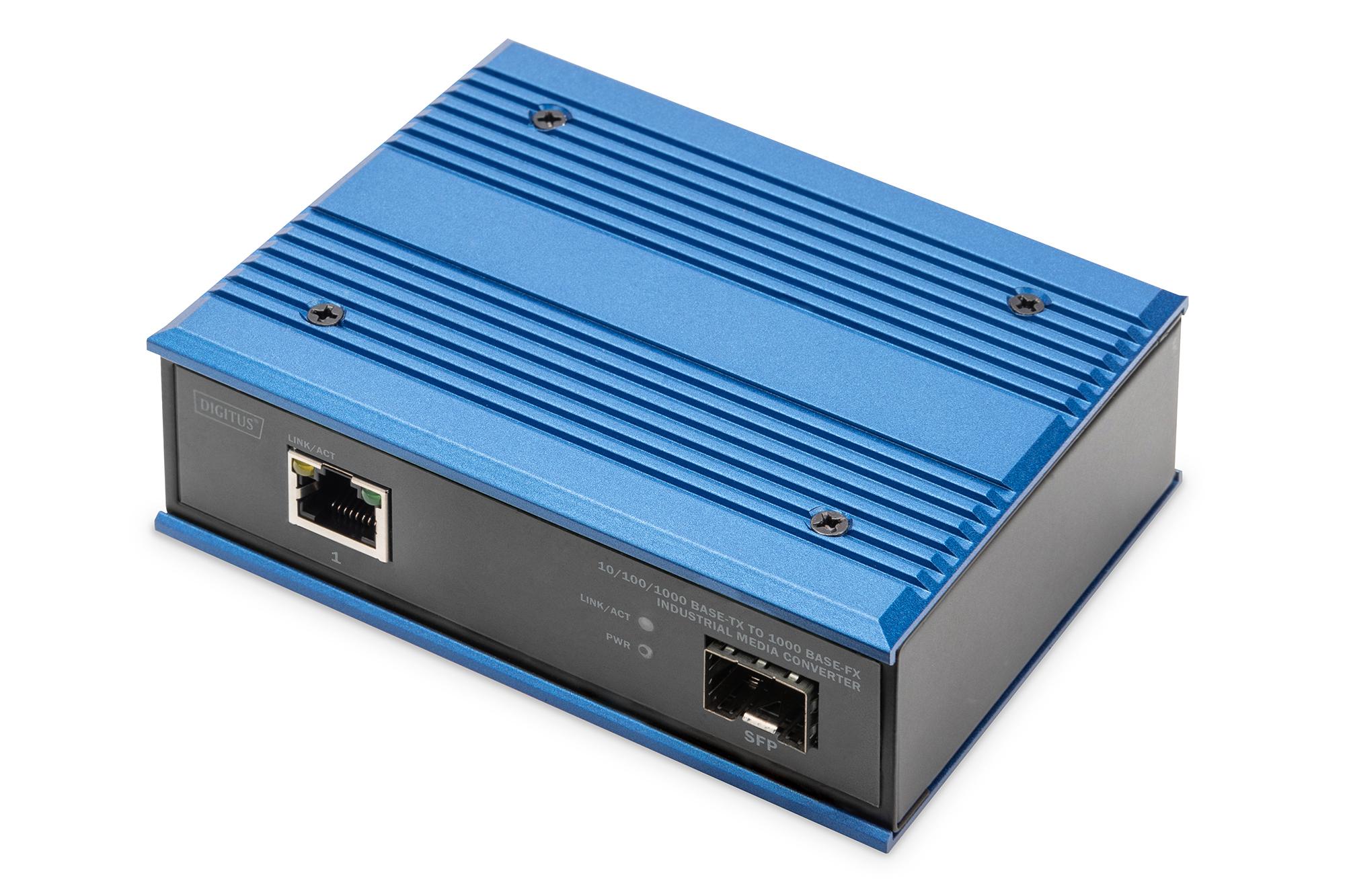

DIGITUS 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter
Product number: DN-652103-1
EAN: 4016032488200
Industrial Gigabit Ethernet Media Converter, SFP SFP Open Slot, without SFP Module
Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire.
The use of high quality photoelectric integration module to provide good optical and electrical characteristics
Ensure reliable data transmission and long working life
Support full duplex or half duplex mode, with automatic negotiation capability
Network port support automatic cross identification
Internal storage and forwarding mechanism, support a variety of protocols
In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
Working power supply: DC 12-48V to provide reverse protection
Description
Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire. The Digitus DN-652103-1 series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 80℃ allows the Digitus DN-652103-1 series to be placed in almost any difficult environment. Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000 Base-TX and 1000 Base-FX network. The Digitus DN-652103-1 series provides the flexibility to all kinds of 10/100/1000 Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance. The Digitus DN-652103-1 series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Technical details
The use of a high-quality photoelectric integration module with good optical and electrical properties
Guarantees reliable data transmission and a long service life
Supports full-duplex or half-duplex mode, with automatic negotiation option
Support for network connections with automatic cross detection
Internal storage and forwarding mechanism, supports a wide range of protocols
In accordance with industrial operating standards, the average trouble-free operation is more than 300,000 hours
Redundant power supply: DC 12-48V with reverse polarity protection
Interface: 1 port 10/100/1000 Base-Tx RJ-45 with auto-negotiation and auto-MDI/ MDI-X function, 1-port 1000 Base-Fx interface SFP connection, multi-mode up to 2km, single-mode up to 20km/40km/60km/80km
10/100/1000 Base-TX connection: 1 connection RJ-45 auto-MDI / MDI-X
1000 Base-FX connection: 1 SFP slot
Fiber connection type: Varies depending on the module
Optical frequency: Varies depending on the SFP module
Performance specification: Bandwidth: 14 Gbps, Packet buffer memory: 1.2 Mbit, Packet forwarding rate: 10.5 Mpps, MAC address table: 2K
Installation: DIN rail
Flow control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Protection class: IP40 Aluminum housing
LED display: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow
Power input: 12 to 48V DC redundant power supply
Power consumption: - 3 watts
Overvoltage protection: ±4KV
Network protocols: IEEE802.3i 10 Base-T; IEEE802.3u;100 Base-TX/FX; IEEE802.3ab 1000 Base-T; IEEE802.3z 1000 Base-X; IEEE802.3x
Network cable: 10 BASE-T: Cat3,4,5 UTP(≤100 meters), 100 BASE-TX: Cat5 or higher UTP (≤100 meters), 1000 BASE-TX: Cat6 or higher UTP (≤100 meters)
-Industry standard: FCC CFR47 Part 15, EN55032 Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): Mains connection: ±4kV; Data connection: ±2kV, IEC61000-4-5 (overvoltage): Power connection
MTBF: -300,000 hours
Dimensions (W x D x H): 118x 92.4 x 40 mm
Weight: Product weight: 0.4KG, Packaging weight: 0.53KG
-Working environment: Working temperature: -40～80℃, Storage temperature: -40～80℃, Relative humidity: 5%~95% (no condensation),-
Automatic cable detection - Auto MDI / MDI-X function
DDM support: no
Attributes
Connector 1: RJ45
Connector 2: SFP
DDM Support: no
Industrial usage: yes
PoE injector: no
Ethernet speed: Gigabit
