DL 06-130/T-EN54
quick assembly
impact-resistant housing
BS 5839

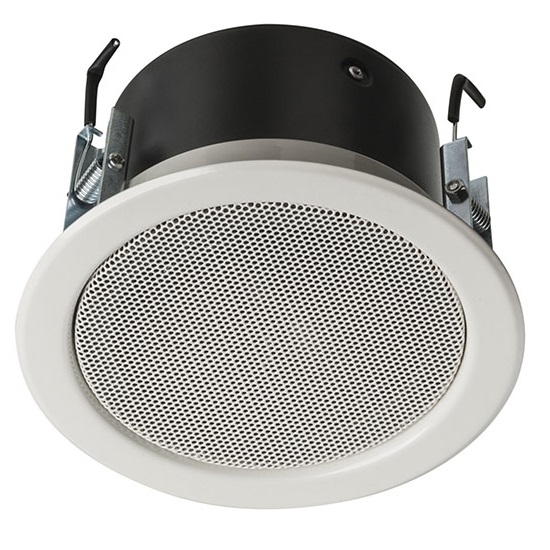

Ceiling-mounted loudspeaker with metal fire dome for voice alarm, certified according to EN 54-24, suitable for voice announcements and background music with very good sound quality in buildings.

The 6W speaker is equipped with a 130mm full-range driver and a 100V transformer with three power settings. The plastic-coated metal construction with a perforated grille in RAL 9010 ensures lasting stability. The integrated 2-pole ceramic terminal block and thermal fuse, as well as the speakers moisture-proof treatment, ensure additional operational reliability.

The speaker is also protected against the risks of environmental influences with protection class IP 55. Quick and easy installation is achieved with a spring-loaded snap fastener with a short clamping range. The connecting cables can be fed into the speaker via a rubber grommet in the fire bowl. The speaker also complies with British Standard BS 5839, Part 8.

Custom paint finish of the loudspeaker in 4-digit RAL or NCS color available for an additional charge.

The fire pot is included in the delivery of the speaker.

This speaker is suitable for ceiling thicknesses of approximately 2-45 mm. Our specifications primarily apply to solid ceilings; for soft ceiling materials, greater ceiling thicknesses may be necessary. Thicker cables and other installations may also result in changes to the relevant specifications. Given the wide variety of materials and manufacturers, we recommend installing a sample in the intended ceiling material to achieve optimal results.
