DIGITUS Hirose modular plugs TM31 for round cable, CAT 6A
Product number: A-MO6A 8/8 HRS
EAN: 4016032272144

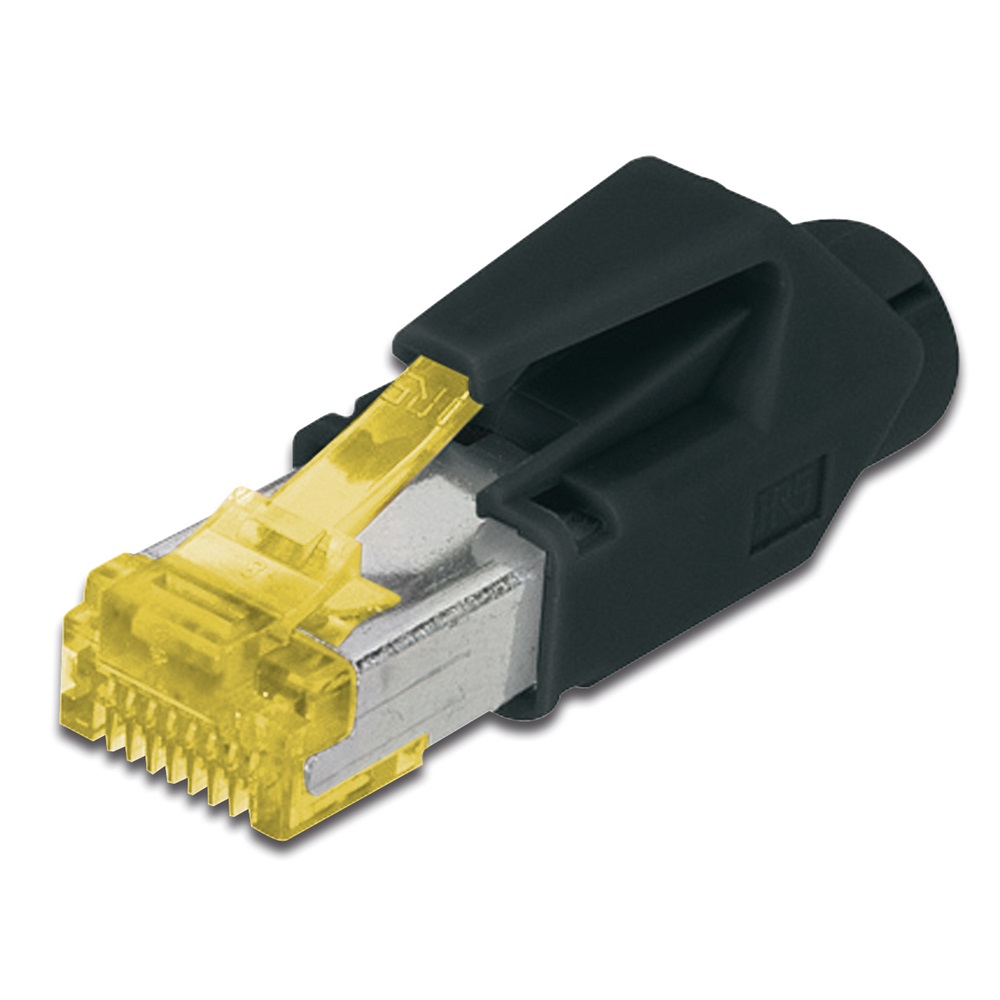

CAT 6A modular RJ45 Plug, Hirose TM31 8P8C, shielded, for round cable, incl. hood

DESCRIPTION
These modular plugs can be used to establish quick and simple connections.

TECHNICAL DETAILS
Layout performance: CAT 6A, 10GBase-T
Area of application: Patch cable assembly
General properties:
Fully shielded with strain relief for installation cables
Incl. comb
Technical properties:
Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
Material connector body: Polycarbonat, clear
Connector contact: Phosphor bronze, brass 0.8 μ gold-plated
Material shielding housing: Brass 0.5 mm, 2 μ nickel-plated
Flammability: UL 94V-2
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Diameter Cu-Conductor: AWG (27/7 ... 24/7)
Operating temperature: -20 °C to +60 °C
Current carrying capacity: 1A at 50 °C
Diameter outer jacket: 5,5 ... 6,2mm
